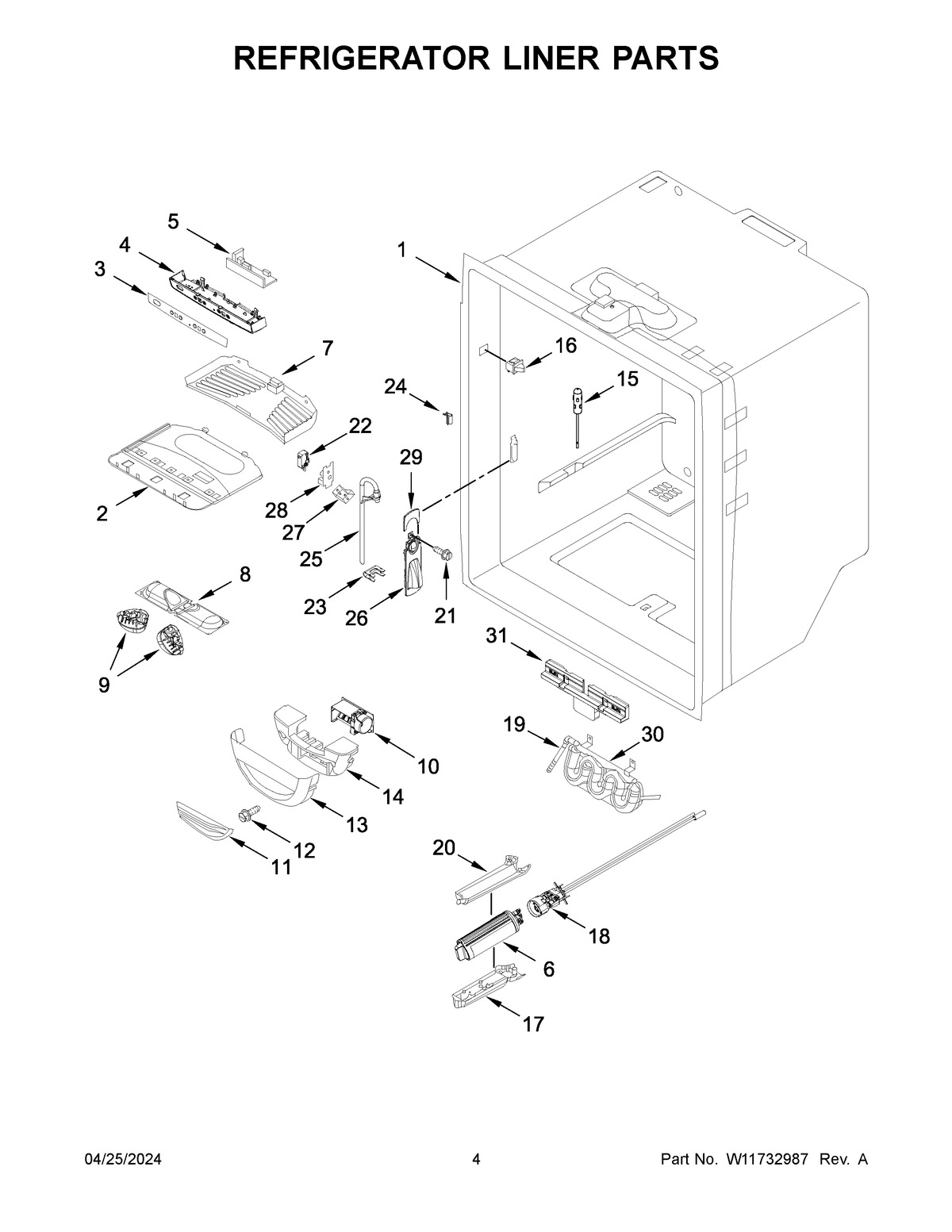

MRFF4236RZ01 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11642013 Whirlpool Wire Harness
1	LINER (NOT A SERVICEABLE PART)
2	W10464764 Whirlpool Refrigerator Housing
3	W11712701 Whirlpool Overlay
4	W11416469 Whirlpool Refrigerator Housing
5	W11642241-includeCORE Whirlpool W11642241 Refrigerator Electronic Control Board + Core
6	EDRARXD1 Whirlpool Water Filter
7	W11284721 Whirlpool Refrigerator Cover
8	W10443023 Whirlpool Refrigerator Housing
9	MODULE
10	CONTROL DAMPER
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	W10316760 Whirlpool Thermistor Kit
16	W11123941 Whirlpool Refrigerator Switch
17	W11706224 Whirlpool Cover Back
18	W11706228 Whirlpool Reservoir
19	WP2300868 Whirlpool Refrigerator Fitting
20	W11706225 Whirlpool Filter Cover
21	W10854958 Whirlpool Refrigerator Screw
22	W11527839 Whirlpool Switch
23	67002816 Whirlpool Refrigerator Waterline Clip
24	W10819546 Whirlpool Refrigerator Clip
25	W11677725 Whirlpool Refrigerator Guide
27	W11527411 Whirlpool Refrigerator Foam Seal
28	W11515355 Whirlpool Refrigerator Plate
29	W11519867 Whirlpool Refrigerator Cover
30	W11229977 Whirlpool Refrigerator Reservoir
31	W11714300 Whirlpool Insulation
