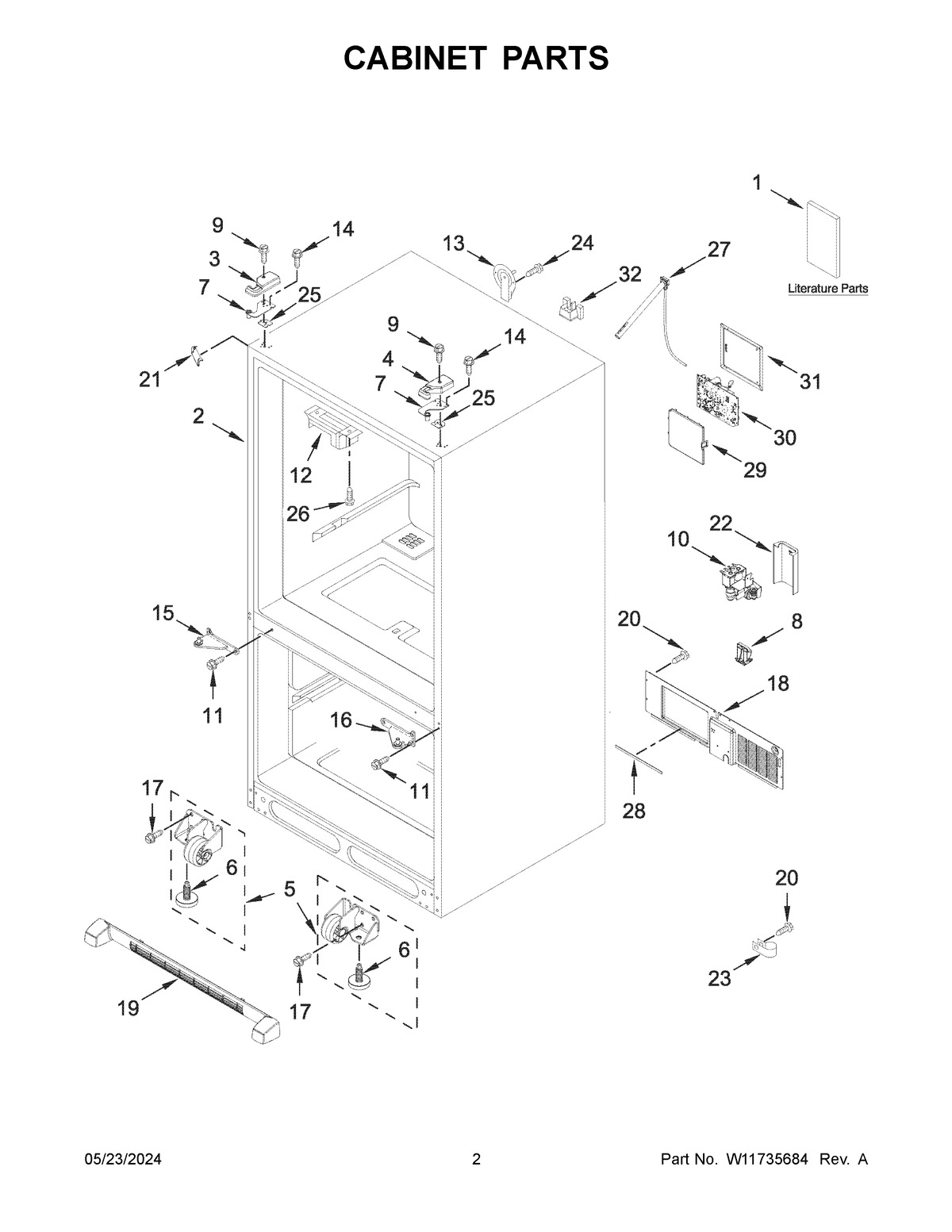

MRFF5033PZ02 02 – CABINET PARTS

MRFF5033PZ02 02 – CABINET PARTS

Written by

in

MRFF5033PZ02 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1OWNERS MANUAL
1BTECH SHEET
2CABINET (NOT A SERVICABLE PART)
3WPW10337648 Whirlpool Refrigerator Cover
4WPW10191117 Whirlpool Refrigerator Cover
5AWPW10515762 Whirlpool Refrigerator Cabinet Roller
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7W11592375 Whirlpool Door Hinge
7AW11592374 Whirlpool Refrigerator Top Door Hinge
8W10528513 Whirlpool Tube Clamp
9WP8281196 Whirlpool Screw
10W11524655 Whirlpool Refrigerator Valve
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
15W11642008 Whirlpool Door Hinge
16W11642010 Whirlpool Door Hinge
1767006564 Whirlpool Refrigerator Screw
18W10210980 Whirlpool Refrigerator Back Cover
19WPW10534160 Whirlpool Refrigerator Front Grille
20W11686675 Whirlpool Screw
21WP12587703AP Whirlpool Refrigerator Filler
22W10208593 Whirlpool Refrigerator Valve Cover
23W11456069 Whirlpool Refrigerator Clamp
24WP489128 Whirlpool Refrigerator Screw
25A12999502 Whirlpool Refrigerator Hinge Shim
2512999501 Whirlpool Refrigerator Hinge Shim
26W11693756 Whirlpool Screw Assembly
27W11181718 Whirlpool Refrigerator Water Tube
28GASKET
29W10296541 Whirlpool Refrigerator Wire Cover
3012961602 Whirlpool Refrigerator Wire Cover
31WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
32W11686793 Whirlpool Block
