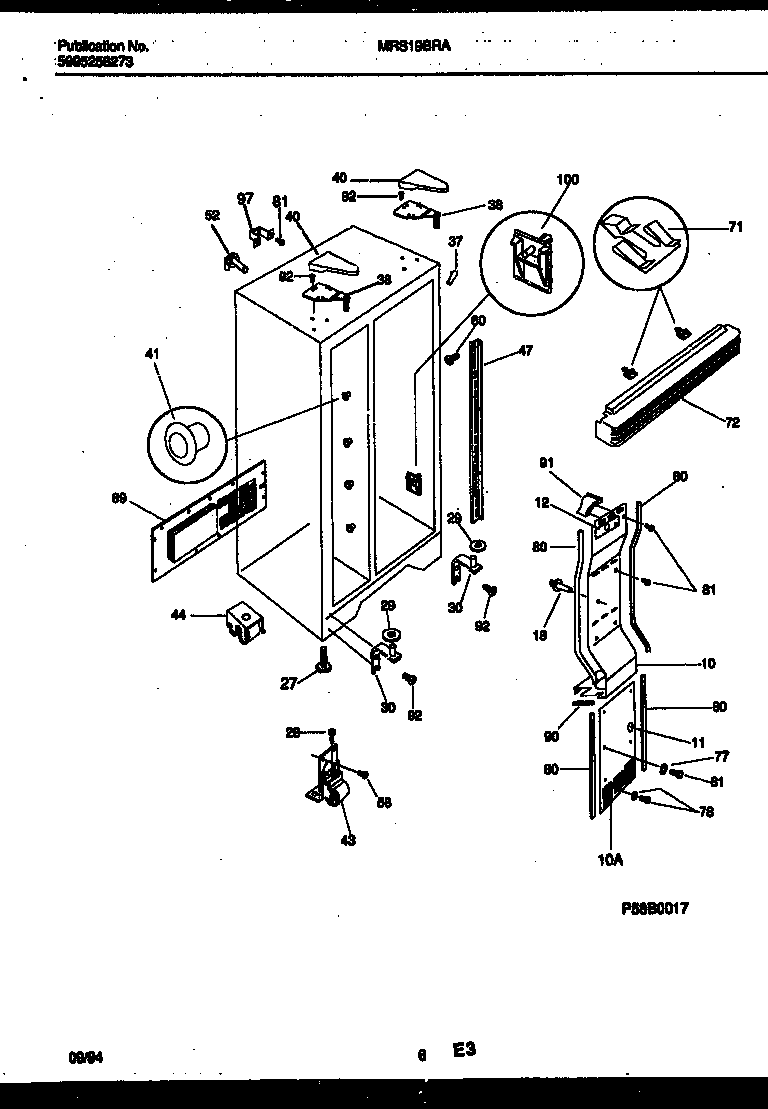

MRS19BRAW1 04 – CABINET PARTS

MRS19BRAW1 04 – CABINET PARTS

Written by

in

MRS19BRAW1 04 – CABINET PARTS

Products

PositionProduct
*111675303321319 Frigidaire Refrigerator White Touch Up Paint
*11167PLUG, BUTTON, CABINET LINER (NI)
10AWCI 5303289035
10WCI 5303289038
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18ASUPPORT-AIR DUCT CVR,1.83“ LONG
18WCI 5303289043
27Screw-leveling,(2)
28WCI 5303289062
29WCI 215314300
29WCI 215003200
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30BTAPPING PLATE, RH (NOT ILLUSTRATED)
30ATAPPING PLATE, LH (NOT ILLUSTRATED)
37TRIM-CABINET CORNER, WHITE
38WCI 215595601
40WCI 5303288945
41A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
415304509705 Frigidaire Refrigerator Grommet
43WCI 5303289059
43ASCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 215163900
47WCI 5303288974
52WCI 5303289294
52APLUG-WTR INLET TUBE
605304455852 Frigidaire Refrigerator Screw
71ASCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
71WCI 215003300
72WCI 215362918
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
78AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
80WCI 218154003
815304455650 Frigidaire Refrigerator Screw
89WCI 5303288947
90WCI 215022602
91WCI 215175300
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
100SUPPORT-PAN COVER
