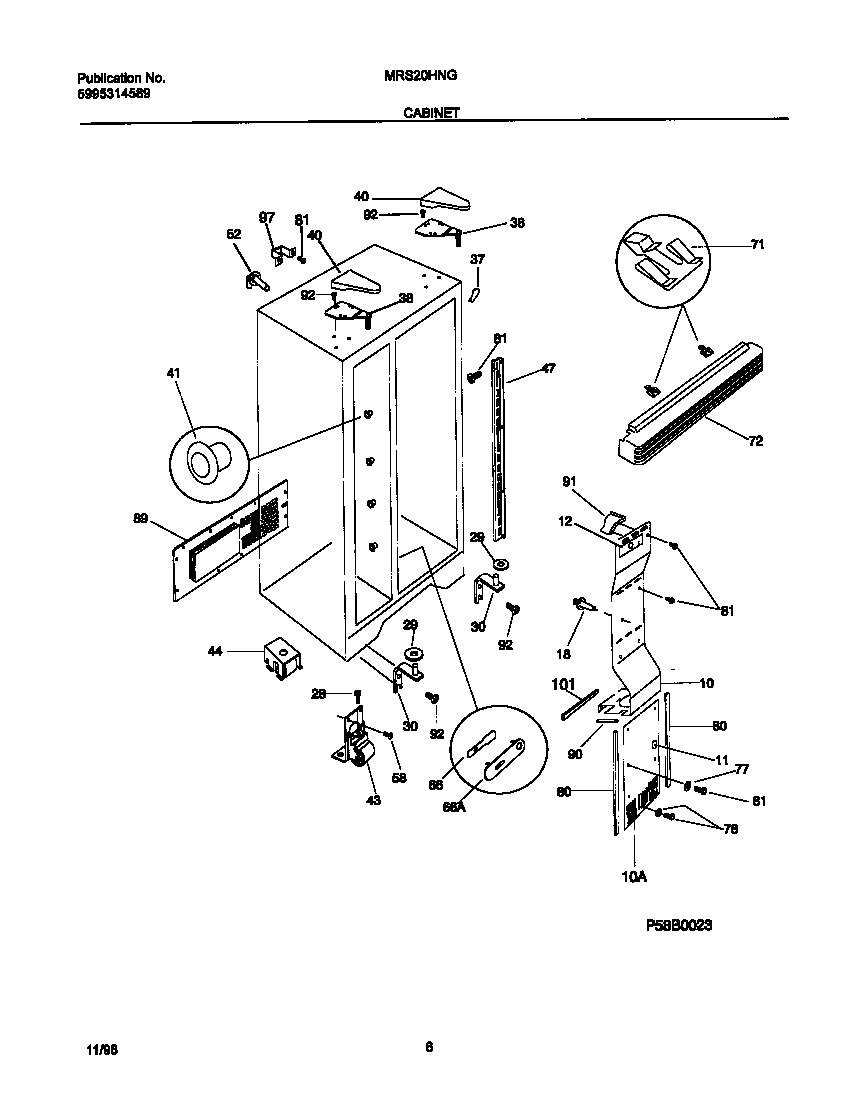

MRS20HNGD0 04 – CABINET

Products

Position	Product
*27365	SUPPORT-AIR DUCT CVR,1.83“ LONG
*27371	PLUG-WTR INLET TUBE
*27367	WCI 218730700
*27368	WCI 218730800
*27366	WCI 218871201
*27370	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*27373	WCI 5303322647
*27364	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*27376	PLUG, BUTTON, CABINET LINER (NI)
*27374	TOUCH, UP PAINT, ALMOND (NI)
*27369	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*27377	WASHER, .28 X .62 X .19, NYLON
*27372	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10	WCI 218748902
10	WCI 218751301
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5303291143
18	WCI 5303289043
28	WCI 5303289062
29B	WCI 215314301
29A	WCI 215003200
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37	WCI 5303321082
38	WCI 218215221
40	WCI 5303318774
41	5304509705 Frigidaire Refrigerator Grommet
43	WCI 218615300
44	WCI 218738300
47	WCI 218659500
52	TUBE-WATER,ICE MOLD FILL ,ELBOW
66	WCI 215050201
66	WCI 218171301
71	218515401 Frigidaire Refrigerator Clip
72	WCI 218359608
77	WASHER-NYLON,3/16 X 5/8 OD
78	5304455651 Frigidaire Refrigerator Screw
80	WCI 218249802
81	5304455650 Frigidaire Refrigerator Screw
89	WCI 5303288947
90	WCI 215022602
91	WCI 218769900
92	241710601 Frigidaire Refrigerator Screw
97	WCI 5303289299
101	WCI 218154003
