MRS20HNGW0 04 – CABINET

MRS20HNGW0 04 – CABINET

Written by

in

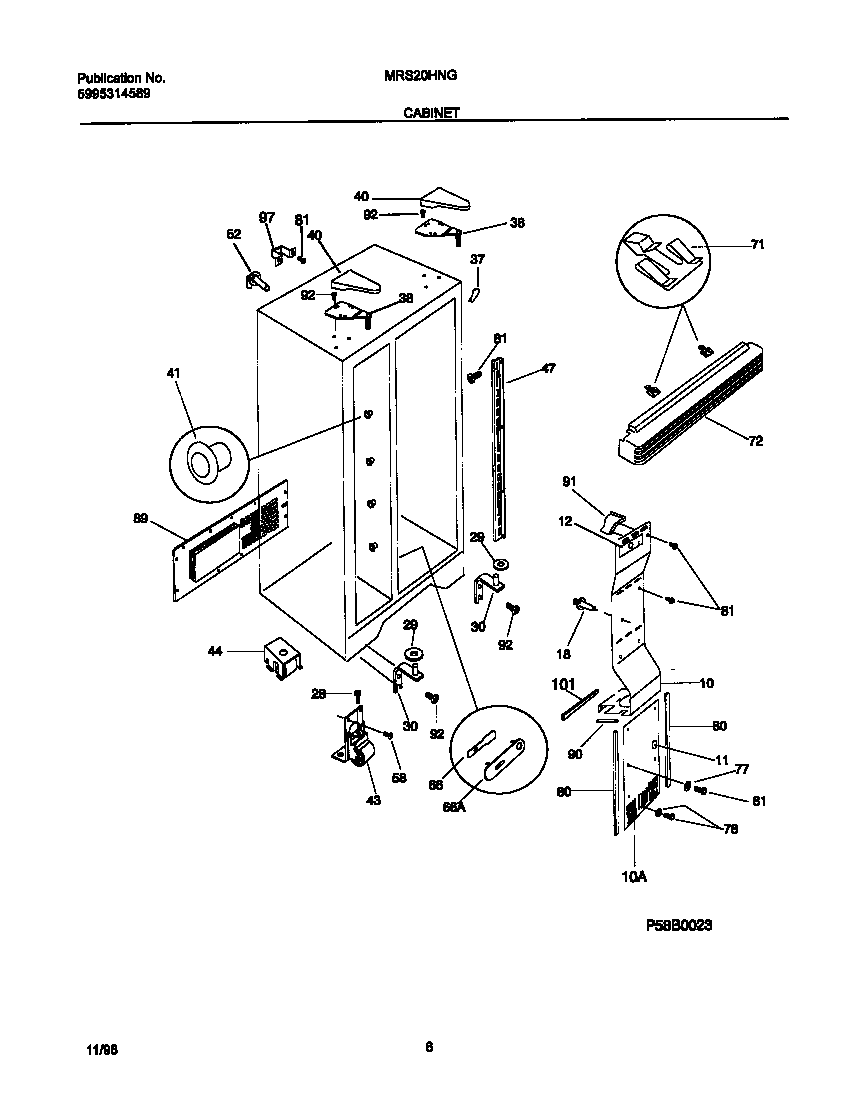

MRS20HNGW0 04 – CABINET

Products

PositionProduct
*27365SUPPORT-AIR DUCT CVR,1.83“ LONG
*27366WCI 218871201
*27371PLUG-WTR INLET TUBE
*27367WCI 218730700
*27368WCI 218730800
*27377WASHER, .28 X .62 X .19, NYLON
*27370SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*27373WCI 5303322647
*27364NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*27376PLUG, BUTTON, CABINET LINER (NI)
*273755303321319 Frigidaire Refrigerator White Touch Up Paint
*27372WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*273695304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10WCI 218751301
10WCI 218748902
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18WCI 5303289043
28WCI 5303289062
29BWCI 215314301
29AWCI 215003200
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321081
38WCI 218215213
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359604
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
89WCI 5303288947
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
101WCI 218154003
