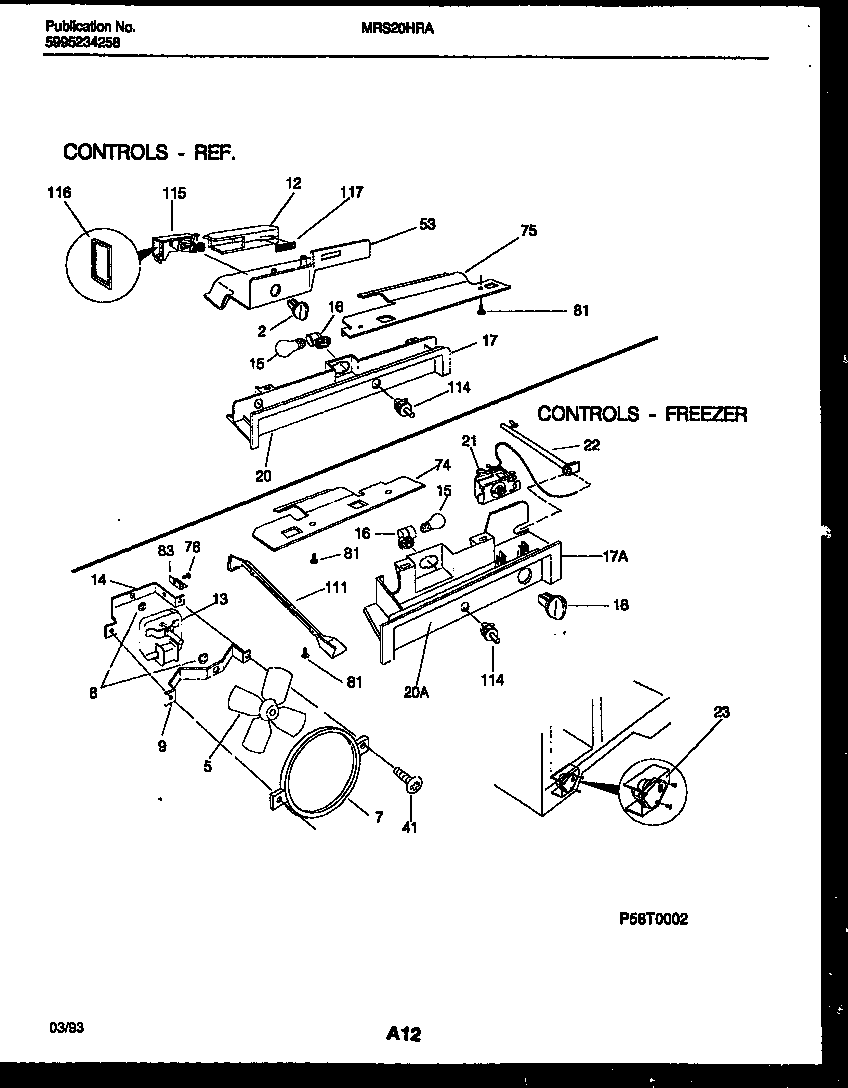

MRS20HRAD0 07 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

MRS20HRAD0 07 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Written by

in

MRS20HRAD0 07 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
2WCI 215028603
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215011600
13A215474201 Frigidaire Refrigerator Washer
13WCI 215348100
13ACOVER-DEFROST TIMER, TOP
13B5304455649 Frigidaire Refrigerator Screw
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16WCI 215011400
16241559801 Frigidaire Light Socket Refrigerator
17AWCI 5303289056
17CONTROL BOX, REFR
18WCI 215051004
20WCI 5303296801
20AWCI 5303296799
21WCI 5303294323
22WCI 3018891
23CSHIELD-DEFROST TIMR,BTM
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
41ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
53WCI 215453800
74WCI 5303289057
75WCI 5303289052
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011501
117WCI 215011700
