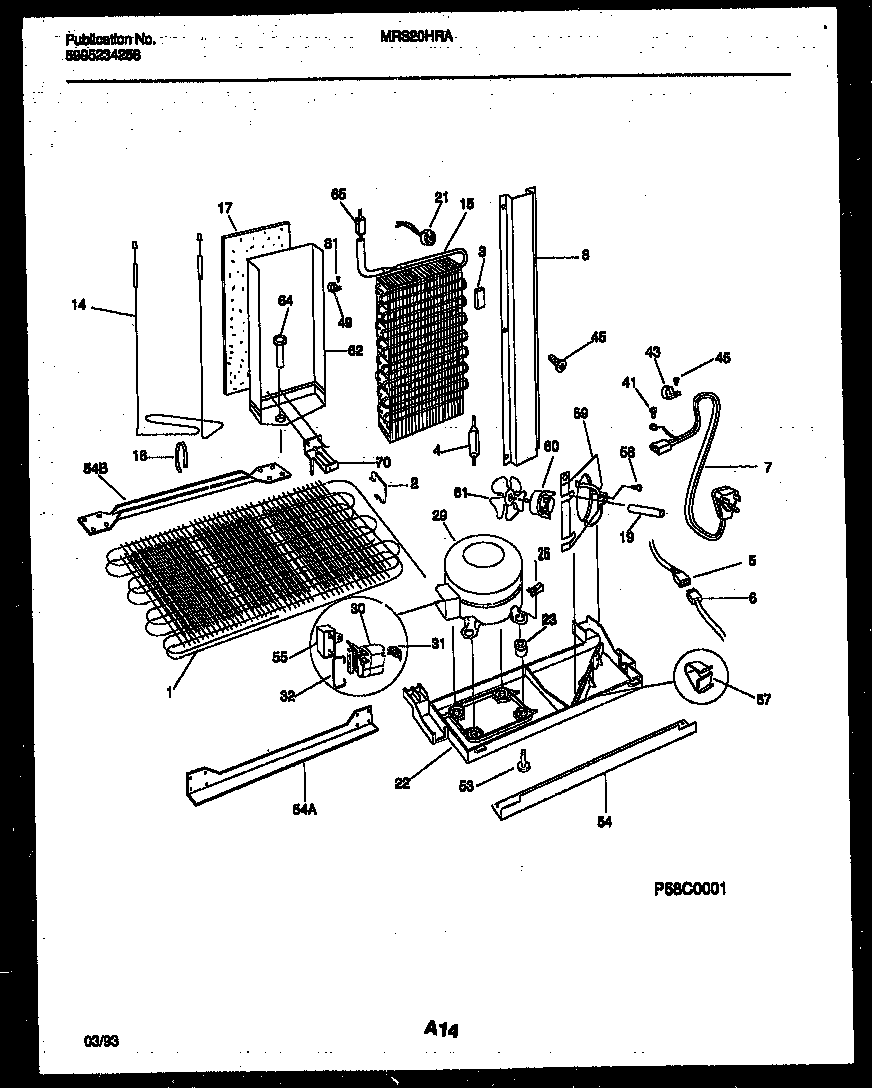

MRS20HRAD1 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	SPACER TUBE
1	SPACER-COND TUBE,BLACK
1	WCI 5303289025
2	WCI 5303289029
3	BLOCK-EVAP COIL, STYROFOAM INSUL, LH (NOT ILLUSTRATED)
3	WCI 215226501
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	HARNESS-WIRING, FRZR CONTROLS (NOT ILLUSTRATED)
5	WCI 215458800
5	HARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATED)
6	WCI 215501600
7	WCI 215459201
8	WCI 5303289033
14	WCI 5303289039
15	WCI 215289603
15	TUBE-INLET (NOT ILLUSTRATED)
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	WCI 5303289042
19	TUBE-RUBBER
21	WCI 215095200
22	WCI 5303289030
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 215014200
29	WCI 5303925125
29	WCI 5303917192
30	WCI 216008900
31	WCI 5303274700
31	WCI 5303272819
32	WCI 215012000
41	5308000039 Frigidaire Refrigerator Screw
43	5308000133 Frigidaire Refrigerator Clamp
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455852 Frigidaire Refrigerator Screw
45	5304455651 Frigidaire Refrigerator Screw
49	WCI 215324700
