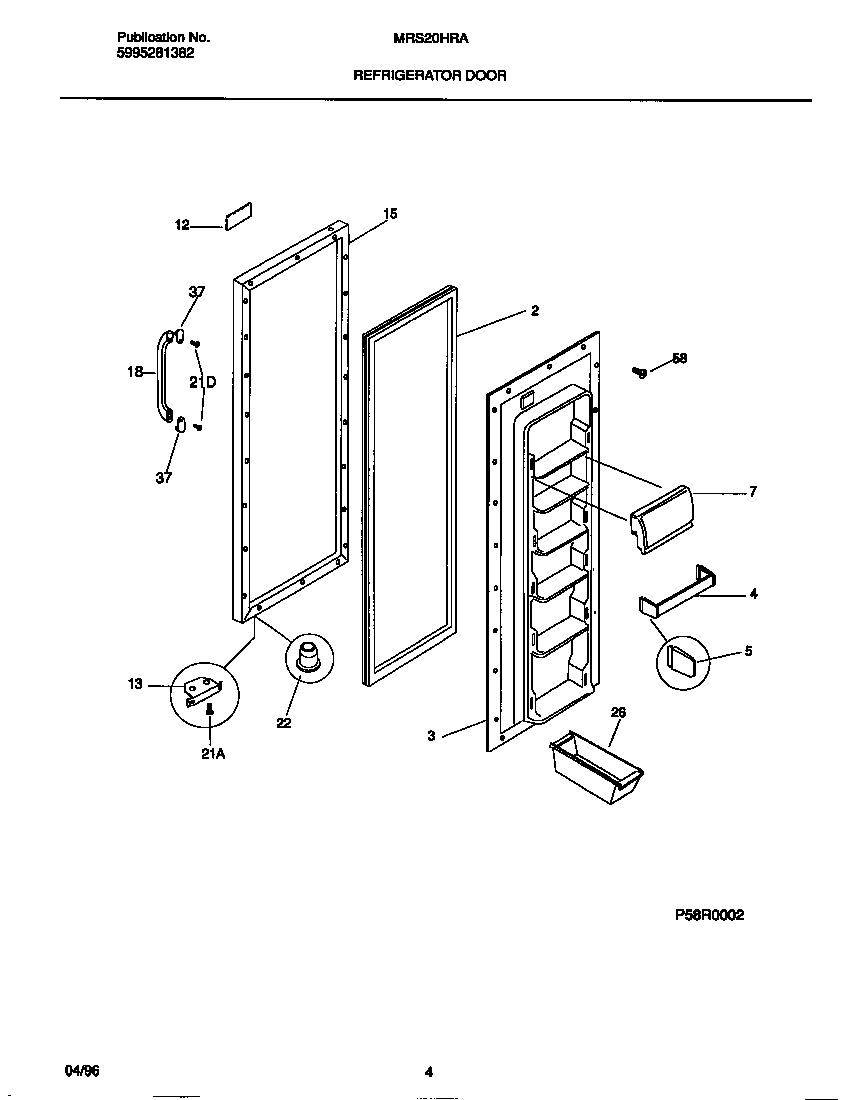

MRS20HRAD5 03 – REFRIGERATOR DOOR

MRS20HRAD5 03 – REFRIGERATOR DOOR

Written by

in

MRS20HRAD5 03 – REFRIGERATOR DOOR

Products

PositionProduct
*55643INSULATION
*55642WCI 215361200
2WCI 215734302
3WCI 5303288953
4RACK-DOOR,W/END CAPS
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7WCI 5303296797
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 215366311
13WCI 5303289522
15PANEL-REFR DOOR, ALMOND, W/ FOAM INSUL
18WCI 215339611
21WCI 215659600
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
26WCI 3204522
37WCI 215361411
58216858001 Frigidaire Refrigerator Screw
