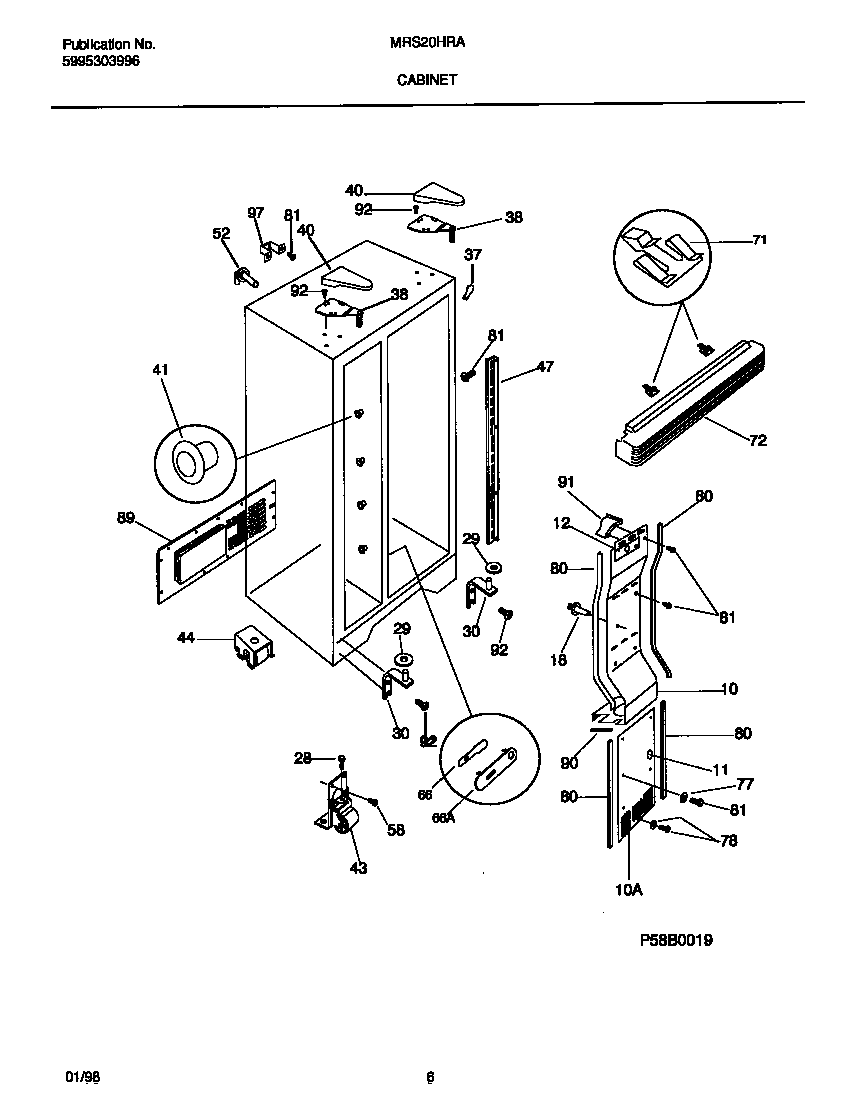

MRS20HRAD8 04 – CABINET

MRS20HRAD8 04 – CABINET

Written by

in

MRS20HRAD8 04 – CABINET

Products

PositionProduct
*58972WCI 5303322647
*58966WCI 218730900
*58968SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*58965WCI 218730700
*58963SUPPORT-AIR DUCT CVR,1.83“ LONG
*58973PLUG, BUTTON, CABINET LINER (NI)
*58974TOUCH, UP PAINT, ALMOND (NI)
*58971WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*58969PLUG-WTR INLET TUBE
*58970SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
*589675304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*58964WCI 218730800
10WCI 218748902
10WCI 218751301
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18WCI 5303289043
28WCI 5303289062
29AWCI 215003200
29BWCI 215314301
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321082
38WCI 218215221
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
605304455852 Frigidaire Refrigerator Screw
66WCI 215050201
66WCI 218171301
71WCI 215003300
72WCI 215362911
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80AWCI 218249802
80BWCI 218154003
815304455650 Frigidaire Refrigerator Screw
89WCI 5303288947
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
