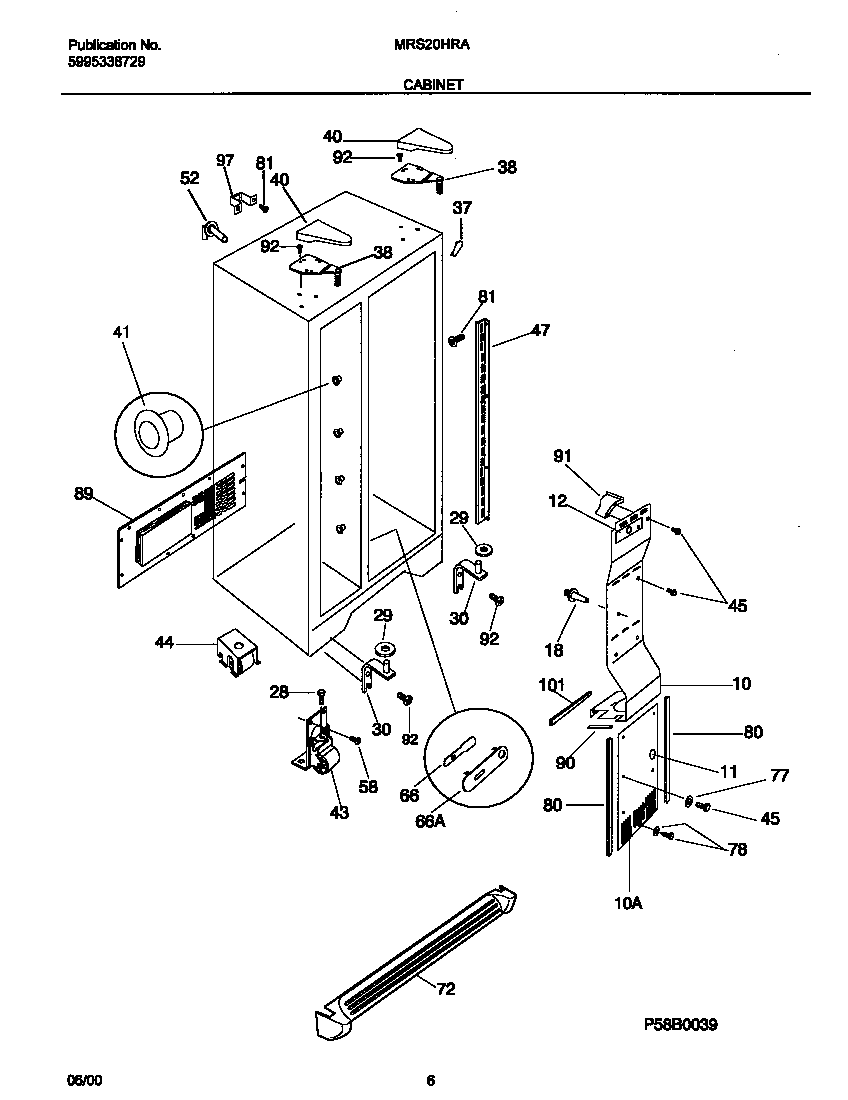

MRS20HRADC 04 – CABINET

Products

PositionProduct
*53691WCI 5303322647
*53690WCI 218663103
*53685WCI 218871201
*53686WCI 218979601
*53687WCI 218979701
*53684SUPPORT-AIR DUCT CVR,1.83“ LONG
*53683NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*53696PLUG, BUTTON, CABINET LINER (NI)
*53694TOUCH, UP PAINT, ALMOND (NI)
*53692WCI 218154003
*53689PLUG-WTR INLET TUBE
*536885304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*53693WCI 218902101
10AWCI 218751301
10WCI 218748902
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321082
38WCI 218215249
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
72WCI 218359608
77WASHER-NYLON,3/16 X 5/8 OD
78SCREW,HEX HD SER WSHR ,8-18 X 0.375
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
89WCI 5303288947
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
