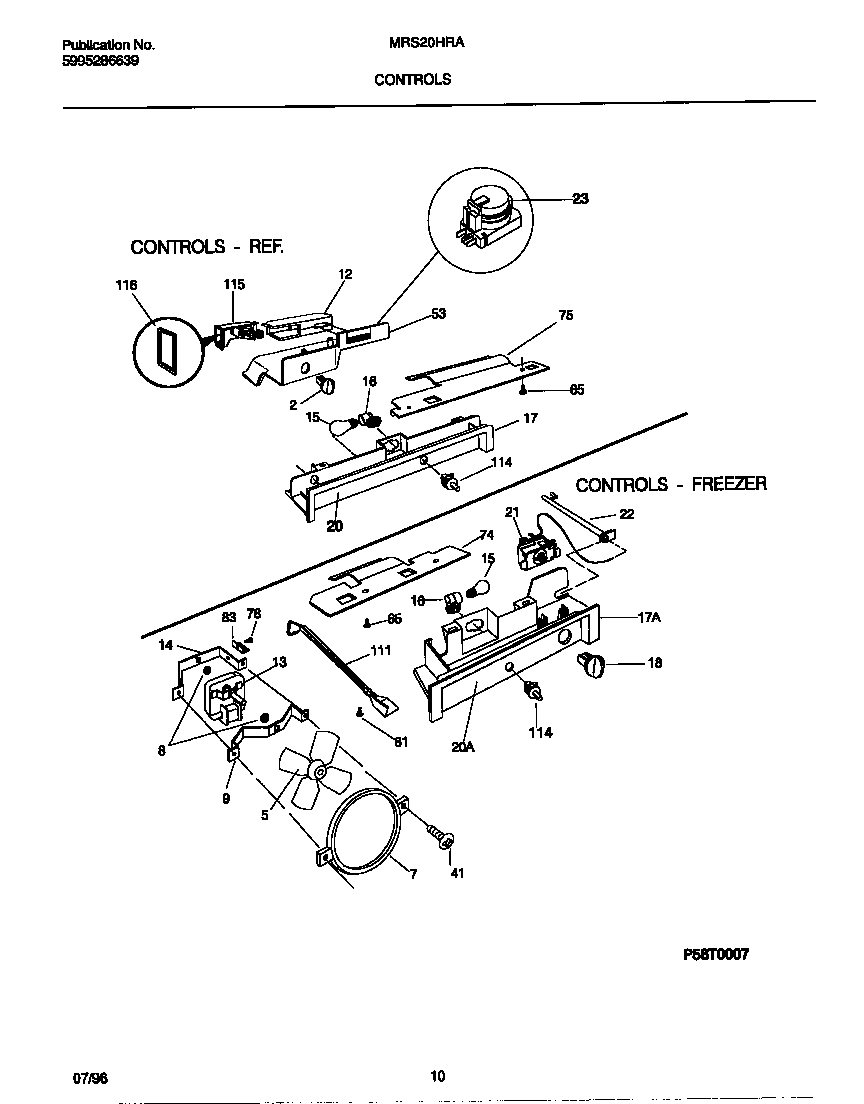

MRS20HRAW6 06 – CONTROLS

MRS20HRAW6 06 – CONTROLS

Written by

in

MRS20HRAW6 06 – CONTROLS

Products

PositionProduct
*70167SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
2WCI 215028605
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13AWCI 218394100
13B215474201 Frigidaire Refrigerator Washer
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17BWCI 215980800
17AWCI 5303289056
17CONTROL BOX, REFR
18WCI 215051008
20WCI 5303318694
20WCI 5303296801
21AWCI 5303300027
21BWCI 5303001260
22WCI 3018891
23EWCI 215617100
23C5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23DSHIELD-DEFROST TIMR,BTM
23BCOVER-DEFROST TIMER, TOP
41BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
41A5308000039 Frigidaire Refrigerator Screw
53WCI 215809505
65WCI 5303001361
74WCI 218465000
75WCI 218465100
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011503
116WCI 215011400
