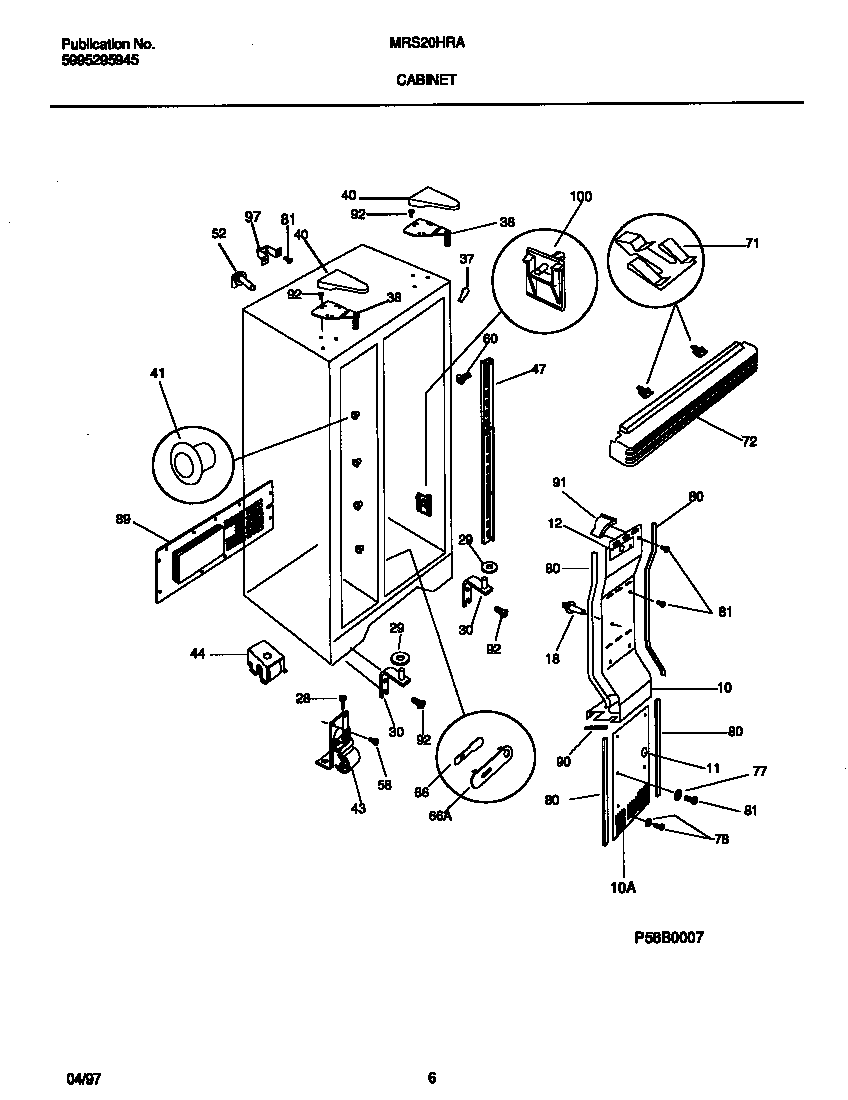

MRS20HRAW7 04 – CABINET

MRS20HRAW7 04 – CABINET

Written by

in

MRS20HRAW7 04 – CABINET

Products

PositionProduct
*987655303321319 Frigidaire Refrigerator White Touch Up Paint
*98763PLUG, BUTTON, CABINET LINER (NI)
*98762WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 5303289038
10WCI 218751300
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18AWCI 5303289043
18BSUPPORT-AIR DUCT CVR,1.83“ LONG
28WCI 5303289062
29AWCI 215003200
29BWCI 215314300
30BWCI 218730700
30DWCI 218730900
30ABRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30CWCI 218730800
37WCI 5303321081
38WCI 218215213
40WCI 5303318773
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41A5304509705 Frigidaire Refrigerator Grommet
43AWCI 218615300
43BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 218738300
47WCI 218659500
52ATUBE-WATER,ICE MOLD FILL ,ELBOW
52BPLUG-WTR INLET TUBE
605304455852 Frigidaire Refrigerator Screw
66WCI 215050201
66WCI 218171301
71BSCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
71AWCI 215003300
72WCI 215362901
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80AWCI 218249802
80BWCI 218154003
815304455650 Frigidaire Refrigerator Screw
89WCI 5303288947
90BWCI 5303322647
90AWCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
100SUPPORT-PAN COVER
