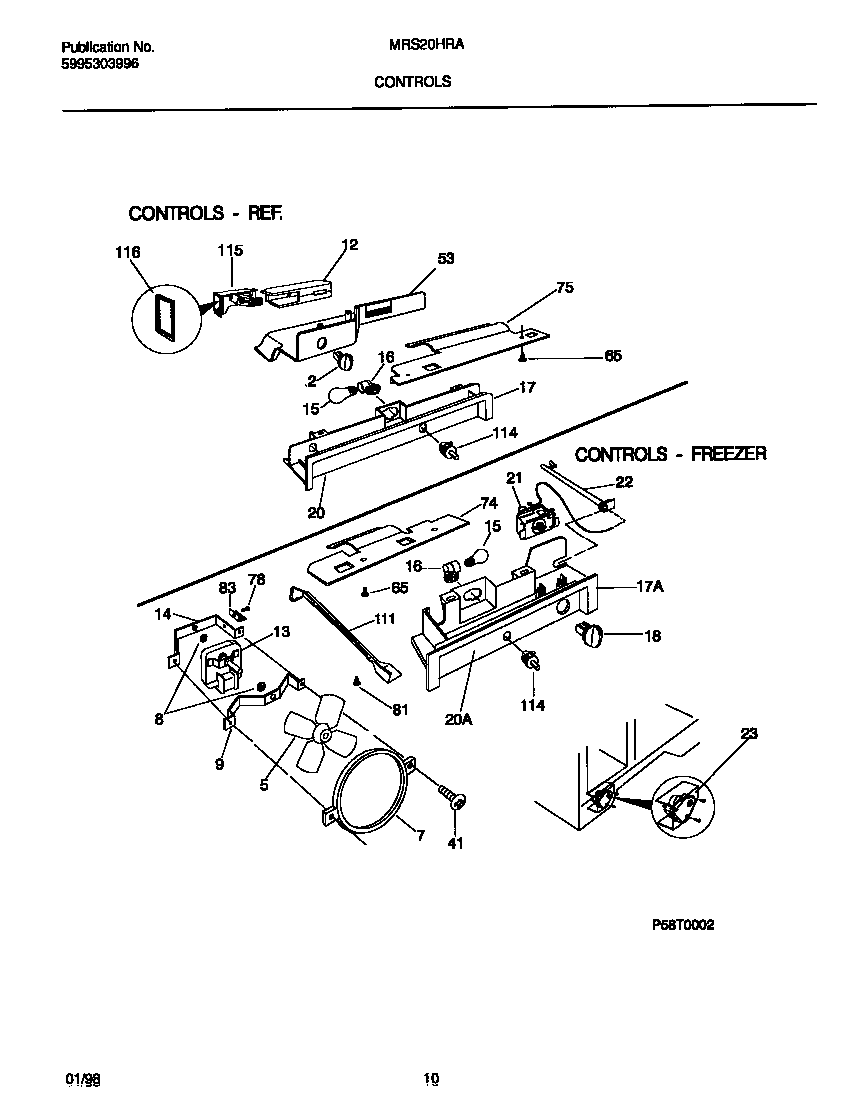

MRS20HRAW8 06 – CONTROLS

MRS20HRAW8 06 – CONTROLS

Written by

in

MRS20HRAW8 06 – CONTROLS

Products

PositionProduct
*589825304455649 Frigidaire Refrigerator Screw
*58983COVER-DEFROST TIMER, TOP
*58984SHIELD-DEFROST TIMR,BTM
*58978215474201 Frigidaire Refrigerator Washer
*58979SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
*58981WCI 218731102
*58980WCI 5303001260
*58985NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
2WCI 215028605
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 218718402
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17WCI 5303289056
17CONTROL BOX, REFR
18WCI 215051008
20WCI 5303296801
20WCI 5303318694
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809505
65WCI 5303001361
74WCI 218465001
75WCI 218465101
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011504
116WCI 215011400
