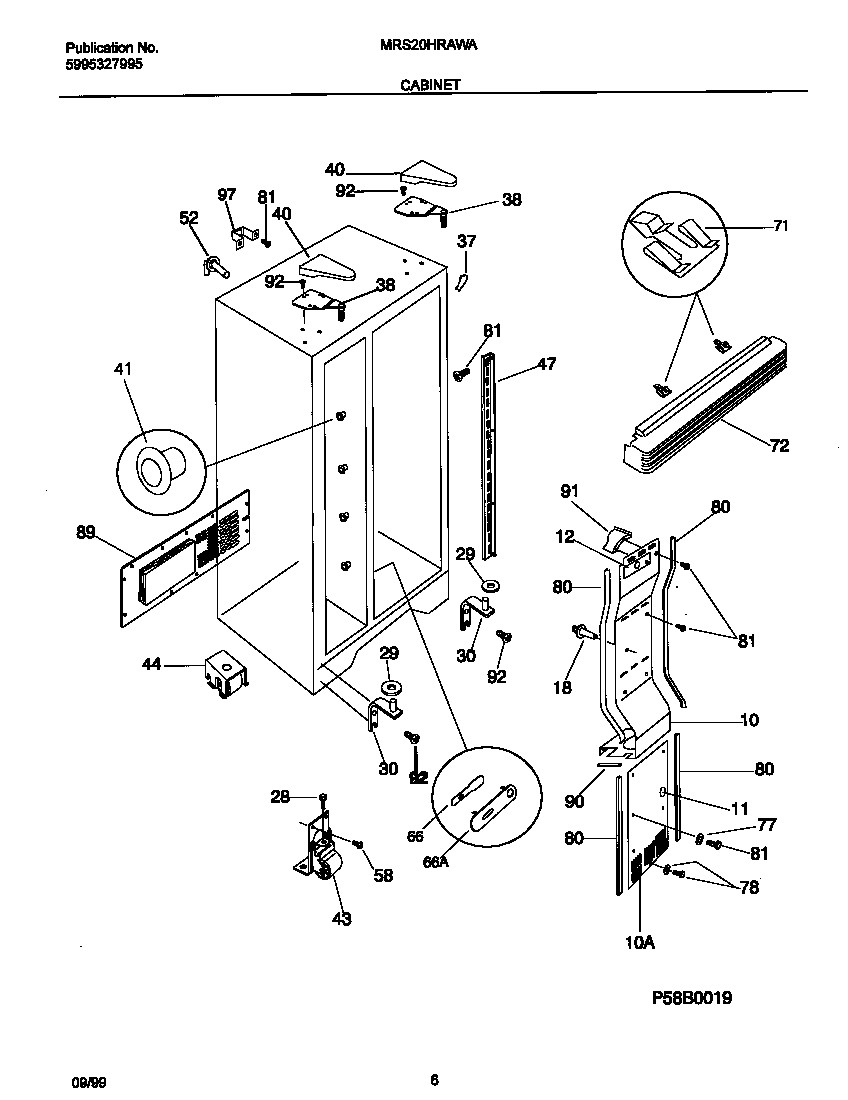

MRS20HRAWA 04 – CABINET

Products

PositionProduct
*26124SUPPORT-AIR DUCT CVR,1.83“ LONG
*26130SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*26132SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
*26126WCI 218730700
*26127WCI 218730800
*26135WCI 218154003
*26128WCI 218730900
*26136WASHER, .28 X .62 X .19, NYLON
*26125WCI 218871201
*26131PLUG-WTR INLET TUBE
*26134WCI 5303322647
*26133218515401 Frigidaire Refrigerator Clip
*26123NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*261295304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*26139PLUG, BUTTON, CABINET LINER (NI)
*261375303321319 Frigidaire Refrigerator White Touch Up Paint
*26138WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 218751301
10WCI 218748902
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18WCI 5303289043
28WCI 5303289062
29WCI 215003200
29WCI 215314301
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321081
38WCI 218215213
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71WCI 215003300
72WCI 215362901
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
89WCI 5303288947
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
