MRS20HRAWB 04 – CABINET

MRS20HRAWB 04 – CABINET

Written by

in

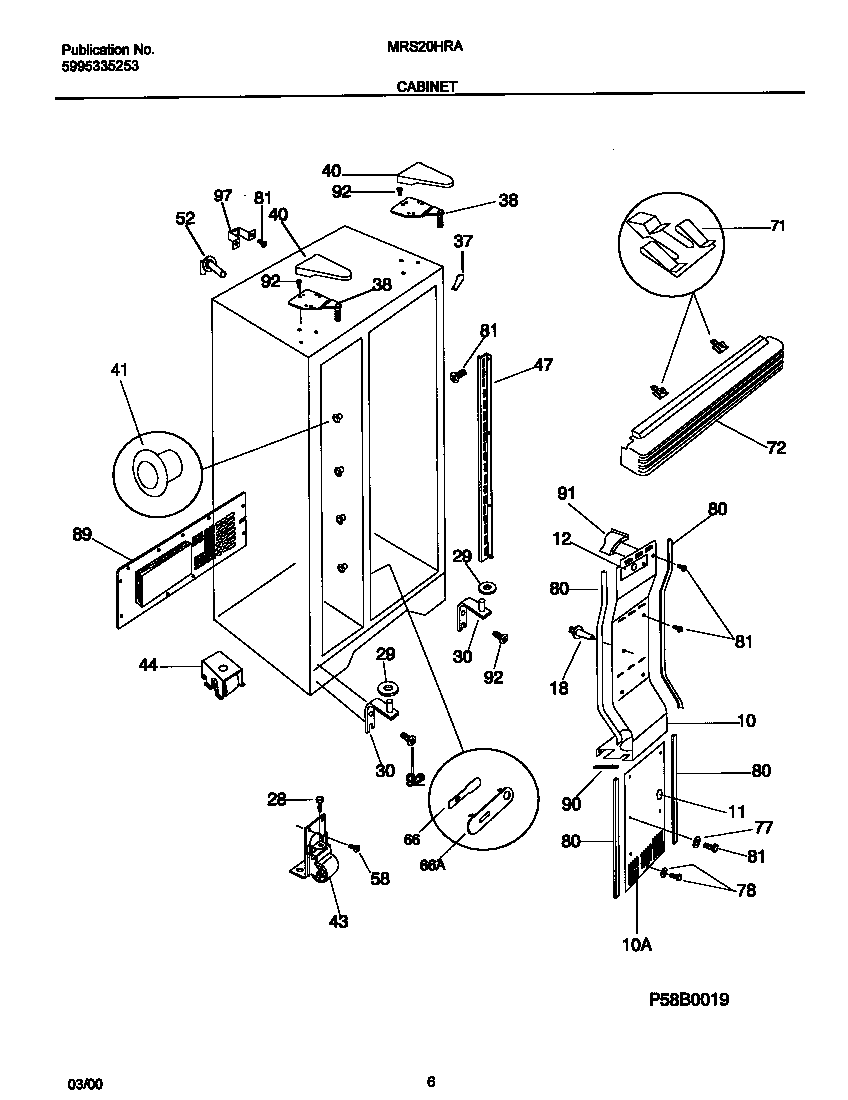

MRS20HRAWB 04 – CABINET

Products

PositionProduct
*48891WCI 5303322647
*48885WCI 218871201
*48892WCI 218663103
*48886WCI 218979601
*48887WCI 218979701
*48890PLUG-WTR INLET TUBE
*48894WCI 218902101
*48889SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*48884SUPPORT-AIR DUCT CVR,1.83“ LONG
*48883NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*488885304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*48893WCI 218154003
*488965303321319 Frigidaire Refrigerator White Touch Up Paint
*48897PLUG, BUTTON, CABINET LINER (NI)
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10AWCI 218751301
10WCI 218748902
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18WCI 5303289043
28WCI 5303289062
29BWCI 215314301
29AWCI 215003200
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321081
38WCI 218215241
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
71WCI 215003300
72WCI 215362901
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
89WCI 5303288947
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
