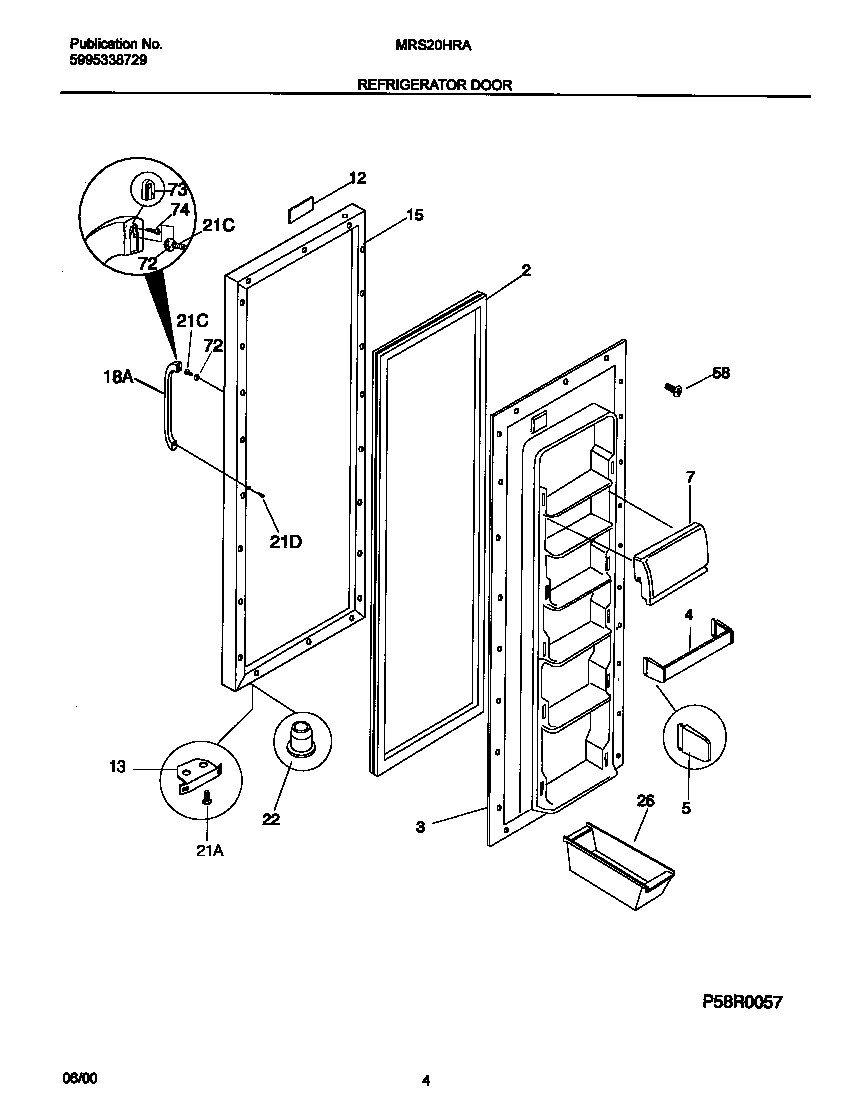

MRS20HRAWC 03 – REFRIGERATOR DOOR

MRS20HRAWC 03 – REFRIGERATOR DOOR

Written by

in

MRS20HRAWC 03 – REFRIGERATOR DOOR

Products

PositionProduct
*53682INSULATION
*53681TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
2WCI 215734312
3WCI 5303288953
4RACK-DOOR,W/END CAPS
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7WCI 5303296797
12WCI 218428204
13WCI 5303289522
15WCI 5303917866
18WCI 218717401
21WCI 215659600
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21218252201 Frigidaire Refrigerator Screw
22WCI 5303289320
26WCI 3204522
58218781101 Frigidaire Handle Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
