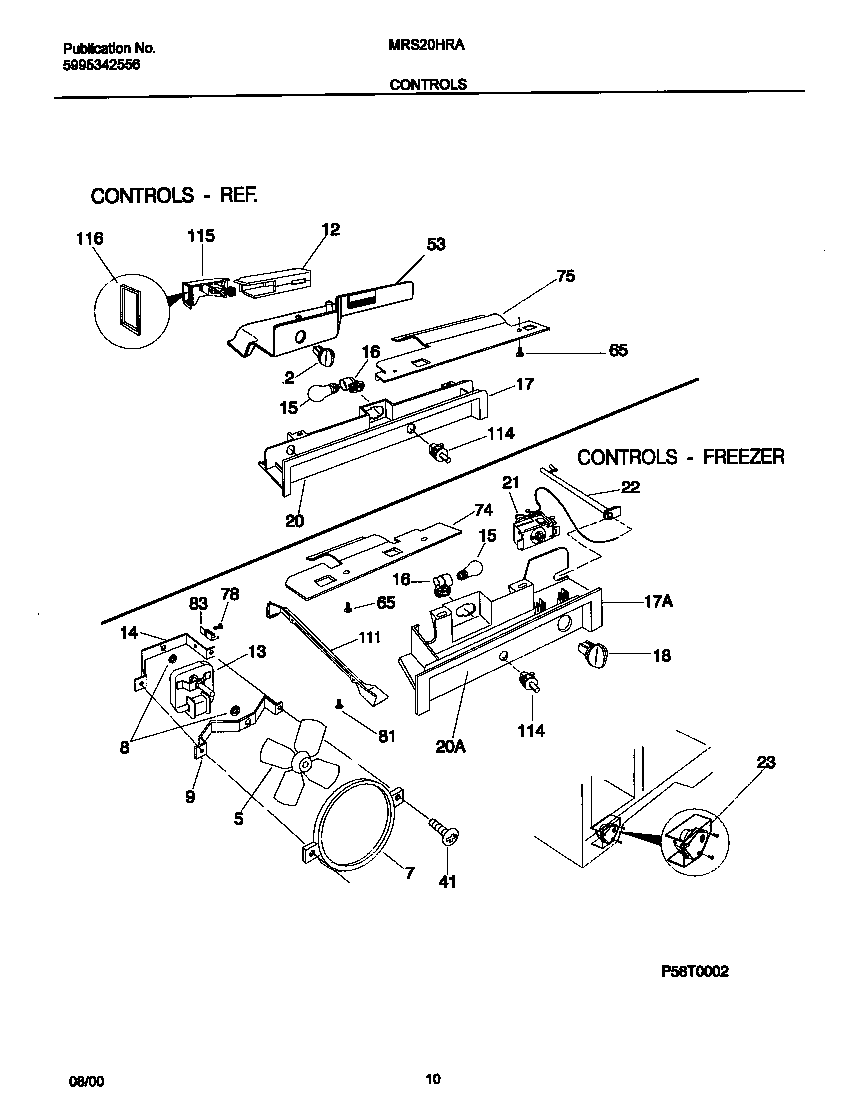

MRS20HRAWD 06 – CONTROL

MRS20HRAWD 06 – CONTROL

Written by

in

MRS20HRAWD 06 – CONTROL

Products

PositionProduct
*607435304455649 Frigidaire Refrigerator Screw
*60740WCI 218731102
*60744SHIELD-DEFROST TIMR,BTM
*60738SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
*60739WCI 5303001260
*60745NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*60741COVER-DEFROST TIMER, TOP
*60742WCI 215617100
*60737215474201 Frigidaire Refrigerator Washer
2WCI 215028605
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 218718402
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17CONTROL BOX, REFR
17WCI 5303289056
18WCI 215051008
20WCI 5303296801
20WCI 5303318694
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415304455651 Frigidaire Refrigerator Screw
53WCI 215809505
65WCI 5303001361
74WCI 218465001
75WCI 218465101
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011503
116WCI 215011400
