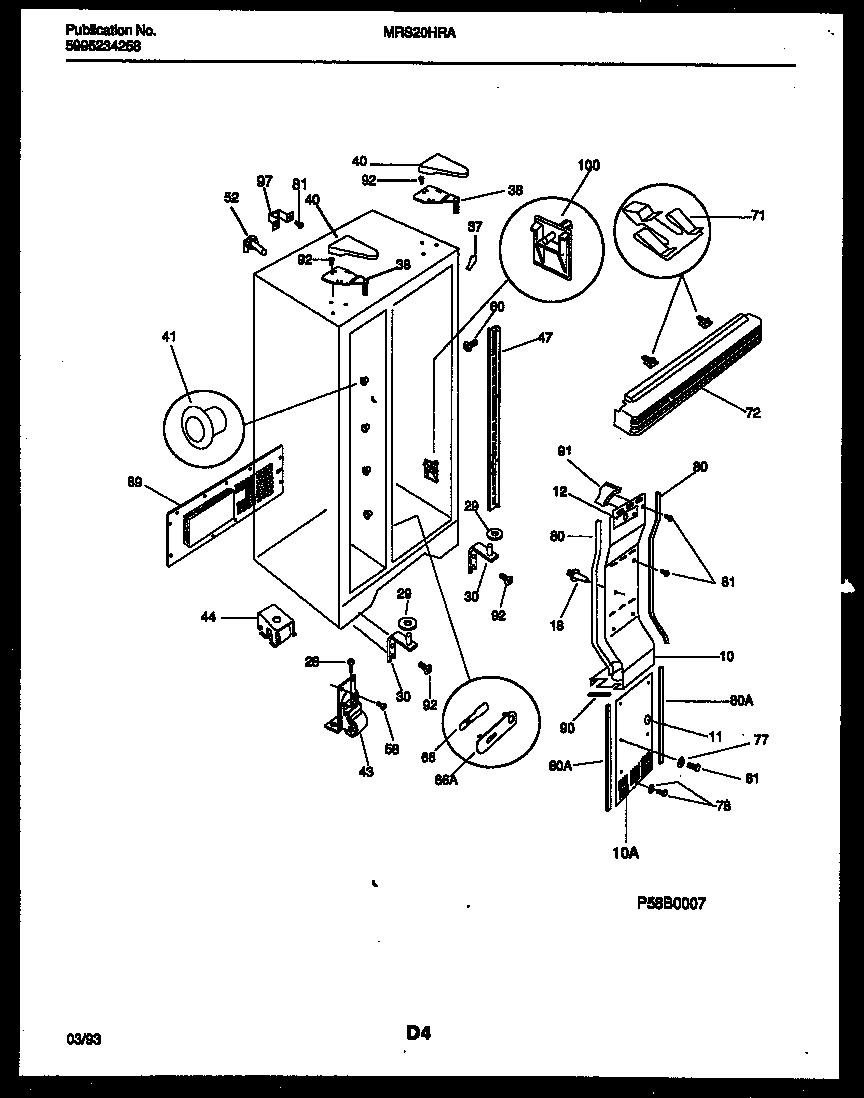

MRS20HRAWO 04 – CABINET PARTS

Products

Position	Product
10	WCI 5303289038
10	WCI 5303289035
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5303291143
18	SUPPORT-AIR DUCT CVR,1.83`` LONG
18	WCI 5303289043
28	WCI 5303289062
29	WCI 215314300
29	WCI 215003200
30	TAPPING PLATE, RH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30	TAPPING PLATE, LH (NOT ILLUSTRATED)
37	TRIM-CABINET CORNER, WHITE
37	TRIM-CABINET CORNER, ALMOND
38	WCI 215004400
40	WCI 5303288946
40	WCI 5303288945
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41	5304509705 Frigidaire Refrigerator Grommet
43	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43	WCI 5303289059
44	WCI 215163900
47	WCI 5303288974
52	PLUG-WTR INLET TUBE
52	WCI 5303289294
60	5304455852 Frigidaire Refrigerator Screw
66	WCI 215050101
66	WCI 215050201
71	WCI 215003300
72	SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
72	WCI 215362901
72	WCI 215362911
77	WASHER-NYLON,3/16 X 5/8 OD
78	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
78	5304455651 Frigidaire Refrigerator Screw
80	WCI 5303289037
