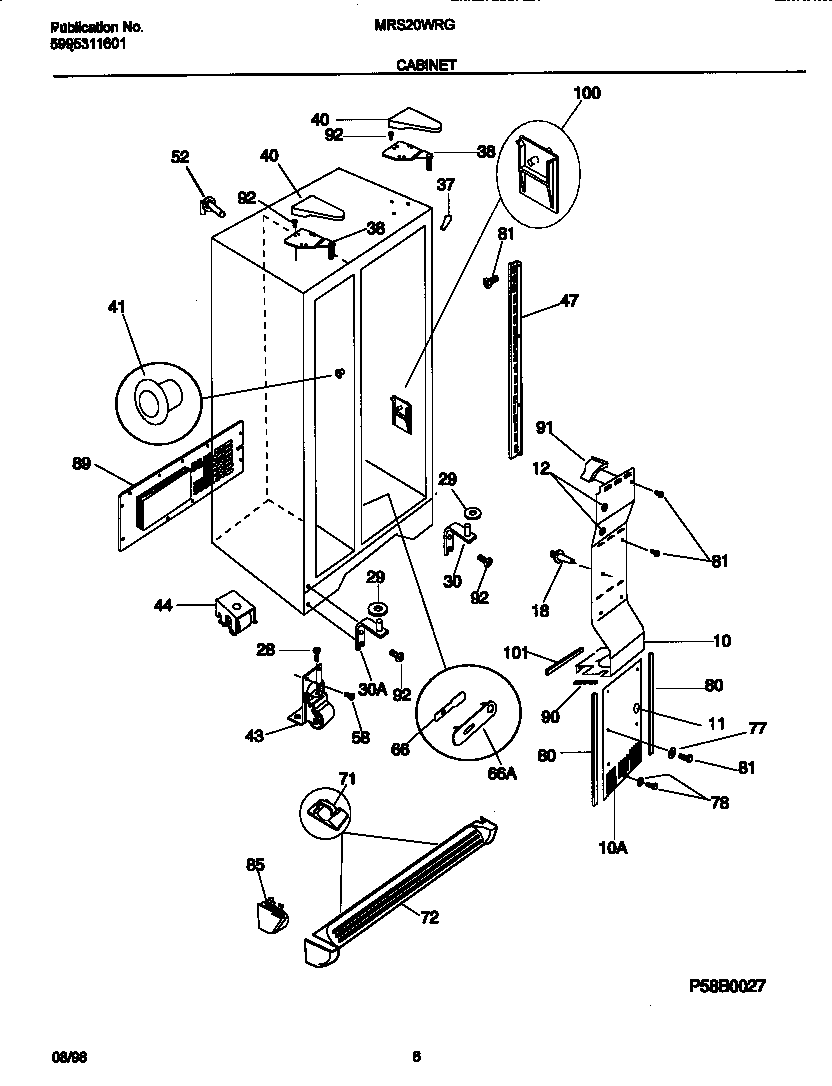

MRS20WRGD0 04 – CABINET

MRS20WRGD0 04 – CABINET

Written by

in

MRS20WRGD0 04 – CABINET

Products

PositionProduct
*12485NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*12493WCI 218836401
*12488WCI 218730800
*12490SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*12492WCI 5303322647
*12486SUPPORT-AIR DUCT CVR,1.83“ LONG
*12496PLUG, BUTTON, CABINET LINER (NI)
*12495TOUCH, UP PAINT, ALMOND (NI)
*12491WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*12487WCI 218871201
*124895304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10WCI 218751301
10WCI 218748901
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29AWCI 215003200
29BWCI 215314301
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30AWCI 215009000
30BWCI 218730700
37WCI 5303321082
38BWCI 218215223
38AWCI 218215221
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359614
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80BWCI 218249802
80AWCI 218154003
815304455650 Frigidaire Refrigerator Screw
85WCI 218359803
89WCI 5303288947
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
101WCI 215305701
