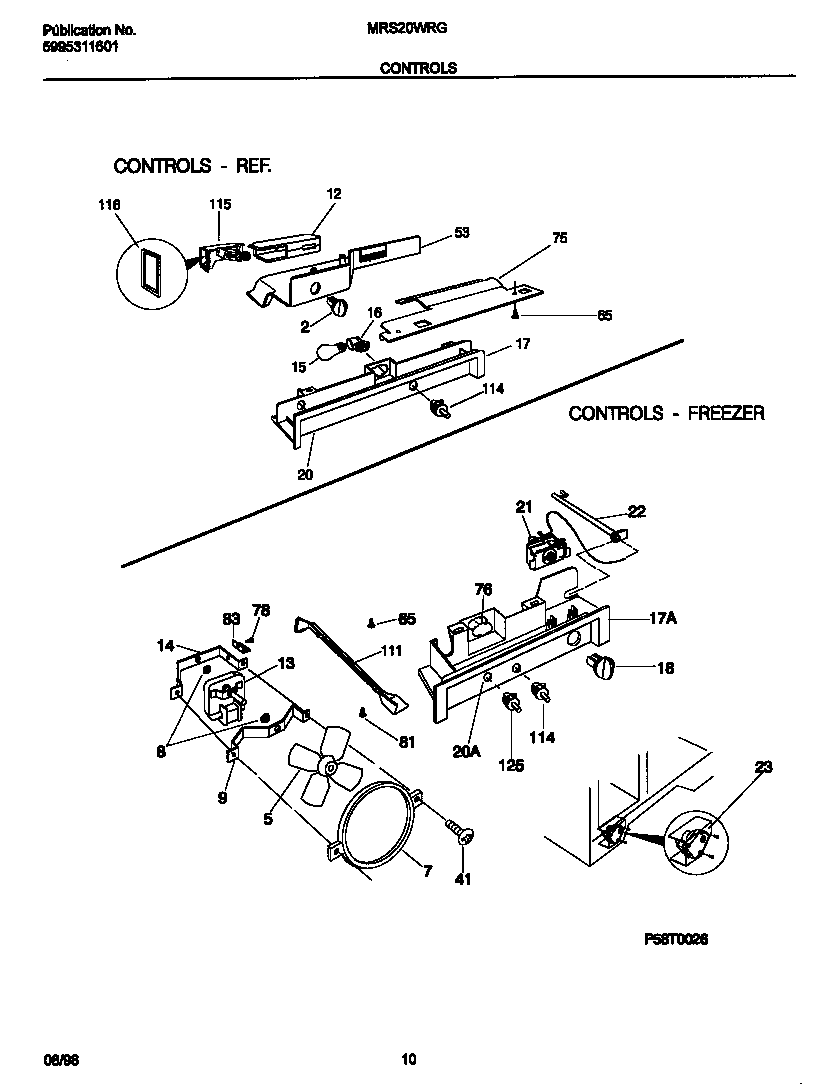

MRS20WRGD0 06 – CONTROLS

MRS20WRGD0 06 – CONTROLS

Written by

in

MRS20WRGD0 06 – CONTROLS

Products

PositionProduct
*125035304455649 Frigidaire Refrigerator Screw
*12501WCI 218731102
*12504SHIELD-DEFROST TIMR,BTM
*12506SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
*12502COVER-DEFROST TIMER, TOP
*12500WCI 5303001260
*12499215474201 Frigidaire Refrigerator Washer
*12505NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
2WCI 215028605
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17AWCI 5303321928
17CONTROL BOX, REFR
17BWCI 215980800
18WCI 215051008
20WCI 5303310473
20WCI 5303323262
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809505
65WCI 5303001361
75WCI 218465100
76WCI 218225800
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011504
116WCI 215011400
125WCI 215334201
