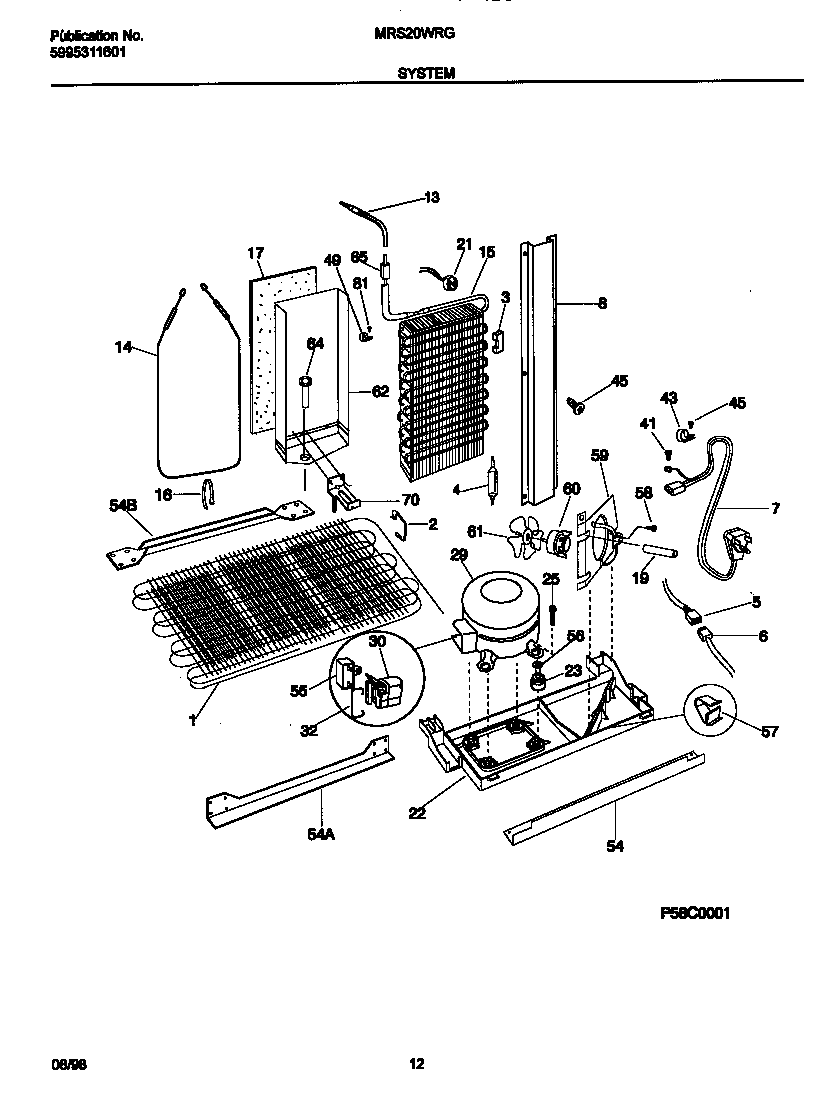

MRS20WRGD0 07 – SYSTEM

MRS20WRGD0 07 – SYSTEM

Written by

in

MRS20WRGD0 07 – SYSTEM

Products

PositionProduct
*12517WCI 215004800
*125135308000133 Frigidaire Refrigerator Clamp
*12510WIRING HARNESS,REFR CONTROLS
*125155304455852 Frigidaire Refrigerator Screw
*12509WIRING HARNESS,FRZR CONTROLS
*12507SPACER-COND TUBE,BLACK
*12516WCI 215004700
*12508SPACER TUBE
*12518WCI 5303917166
*12514WCI 218769200
*12511TUBE-INLET (NOT ILLUSTRATED)
1WCI 5303289025
2WCI 5303289029
3WCI 218679602
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218646100
6WCI 218741500
7WCI 215459201
8WCI 5303289033
13WCI 215746800
14218657301 Frigidaire Refrigerator Defrost Heater 15" Long X 6" Wide
15WCI 218691302
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289042
19WCI 218631200
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5303289030
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 215014200
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 216008904
31WCI 5303321892
32218762900 Frigidaire CLAMP
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
45A5304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289027
54WCI 5303289292
54WCI 5303289311
55WCI 218764601
56WCI 215014100
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048201
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
