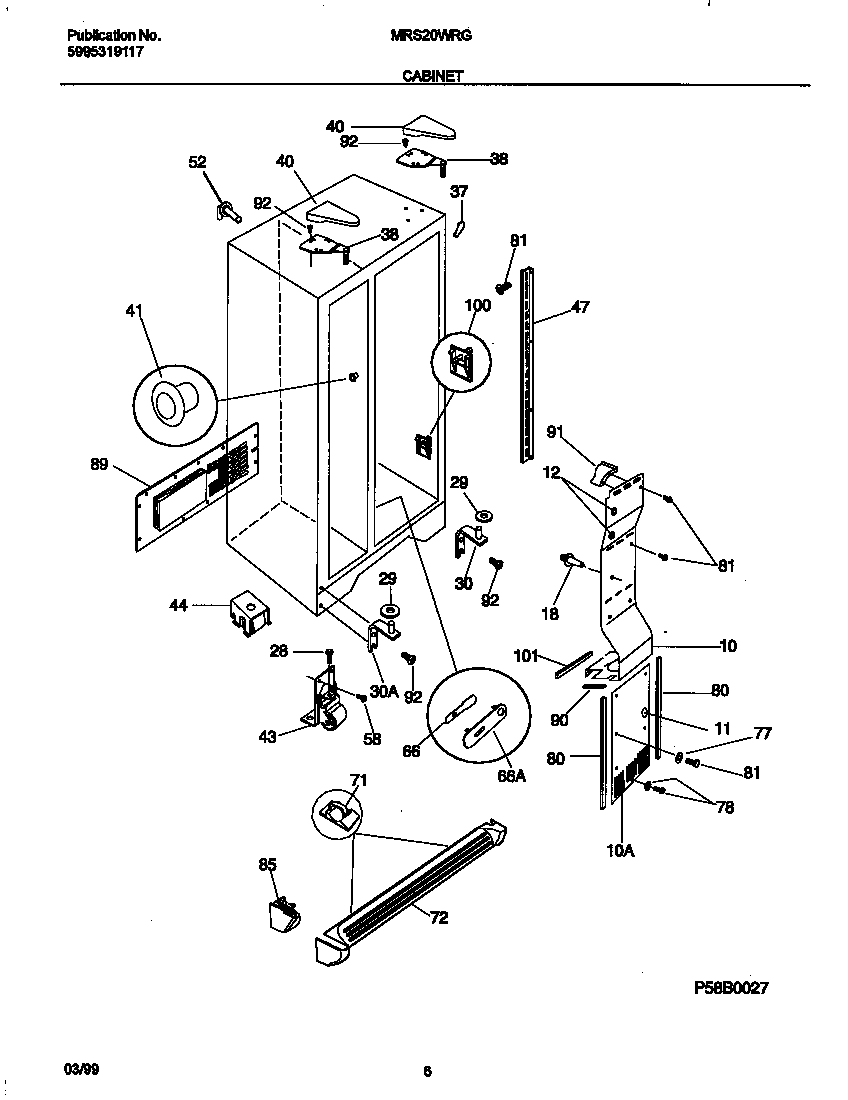

MRS20WRGW2 04 – CABINET

MRS20WRGW2 04 – CABINET

Written by

in

MRS20WRGW2 04 – CABINET

Products

PositionProduct
*80244SUPPORT-AIR DUCT CVR,1.83“ LONG
*80248SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*80250WCI 5303322647
*80251WCI 218902101
*80255PLUG, BUTTON, CABINET LINER (NI)
*80254WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*80246WCI 218730800
*80249WCI 218154003
*80245WCI 218871201
*802475304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*802535303321319 Frigidaire Refrigerator White Touch Up Paint
10WCI 218748901
10WCI 218751301
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29AWCI 215314301
29BWCI 215598900
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30BWCI 218730700
30AWCI 215009000
37WCI 5303321081
38AWCI 218215213
38BBRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359613
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359801
89WCI 5303288947
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
101WCI 218663103
101WCI 215305701
