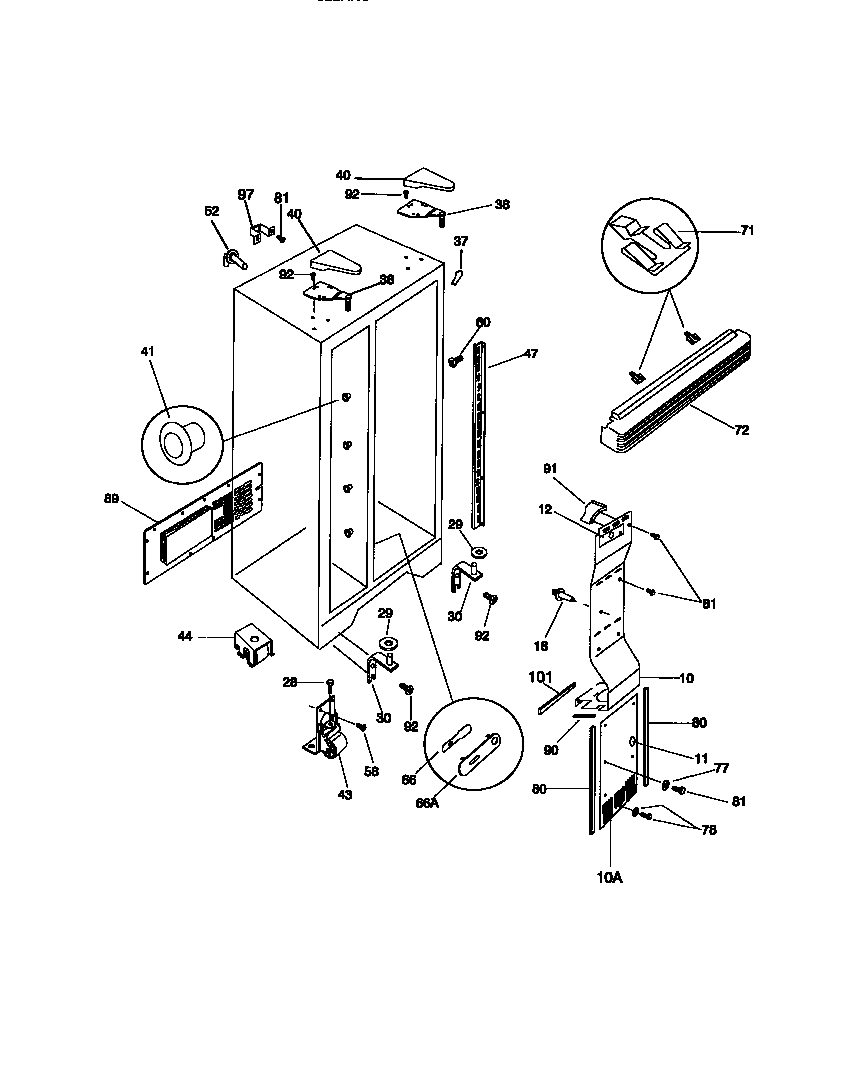

MRS22HNCD0 04 – CABINET

MRS22HNCD0 04 – CABINET

Written by

in

MRS22HNCD0 04 – CABINET

Products

PositionProduct
*37484WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*37486TOUCH, UP PAINT, ALMOND (NI)
*37485PLUG, BUTTON, CABINET LINER (NI)
10WCI 215637601
10WCI 215637400
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18AWCI 5303289043
18BSUPPORT-AIR DUCT CVR,1.83“ LONG
28WCI 5303289062
29BWCI 215314300
29AWCI 215003200
30CTAPPING PLATE, RH (NOT ILLUSTRATED)
30BTAPPING PLATE, LH (NOT ILLUSTRATED)
30ABRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37TRIM-CABINET CORNER, ALMOND
38WCI 218215209
40WCI 5303288946
41A5304509705 Frigidaire Refrigerator Grommet
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43AWCI 5303289059
44WCI 215163900
47WCI 5303288974
52BPLUG-WTR INLET TUBE
52ATUBE-WATER,ICE MOLD FILL ,ELBOW
605304455852 Frigidaire Refrigerator Screw
66WCI 215050201
66WCI 218171301
71AWCI 215003300
71BSCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
72WCI 5303289508
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249801
815304455650 Frigidaire Refrigerator Screw
89WCI 215176300
90WCI 215022602
91WCI 215177600
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
101WCI 215305702
