MRS22HNCD0 06 – CONTROLS

MRS22HNCD0 06 – CONTROLS

Written by

in

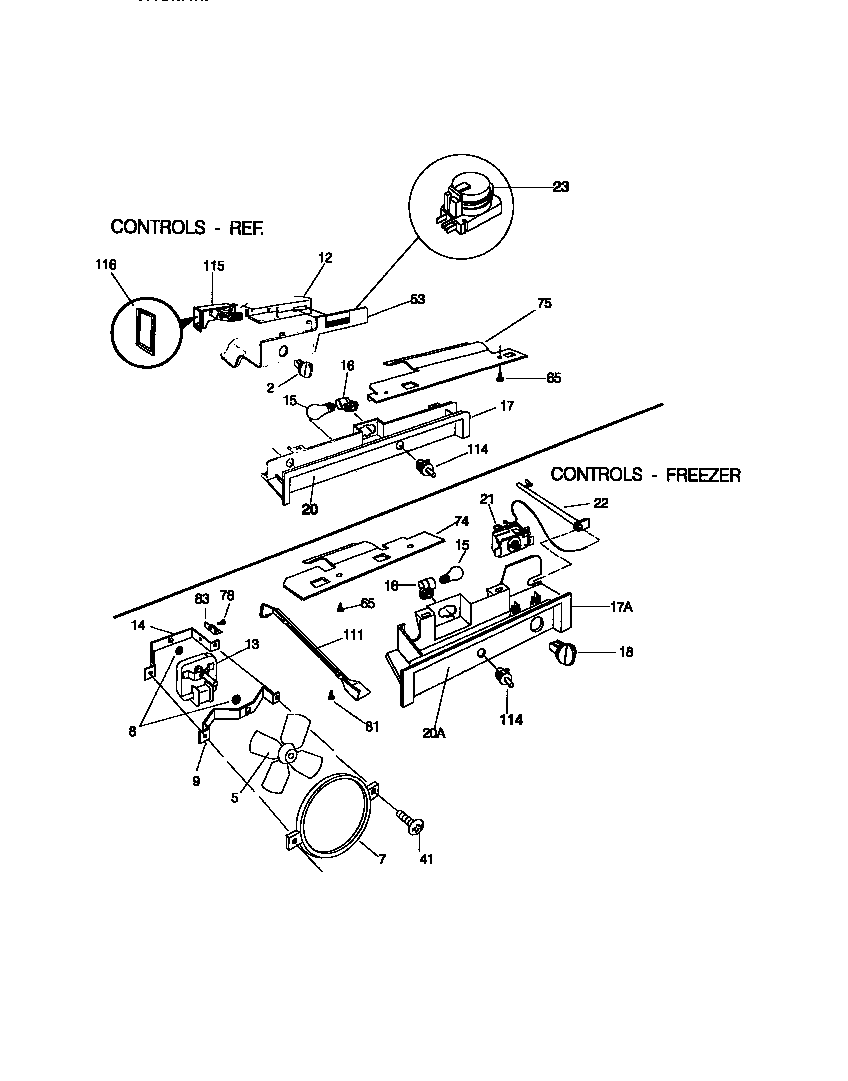

MRS22HNCD0 06 – CONTROLS

Products

PositionProduct
*37489SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
2WCI 215028604
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13AWCI 215348100
13B215474201 Frigidaire Refrigerator Washer
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17WCI 5303289515
17WCI 5303296805
18WCI 215051007
20WCI 5303310313
20WCI 5303296804
21BWCI 5303001260
21AWCI 5303294323
22WCI 3018891
23BWCI 215617100
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
41A5308000039 Frigidaire Refrigerator Screw
41BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
53WCI 215809505
65WCI 5303001361
74WCI 218465000
75WCI 218465100
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011502
116WCI 215011400
