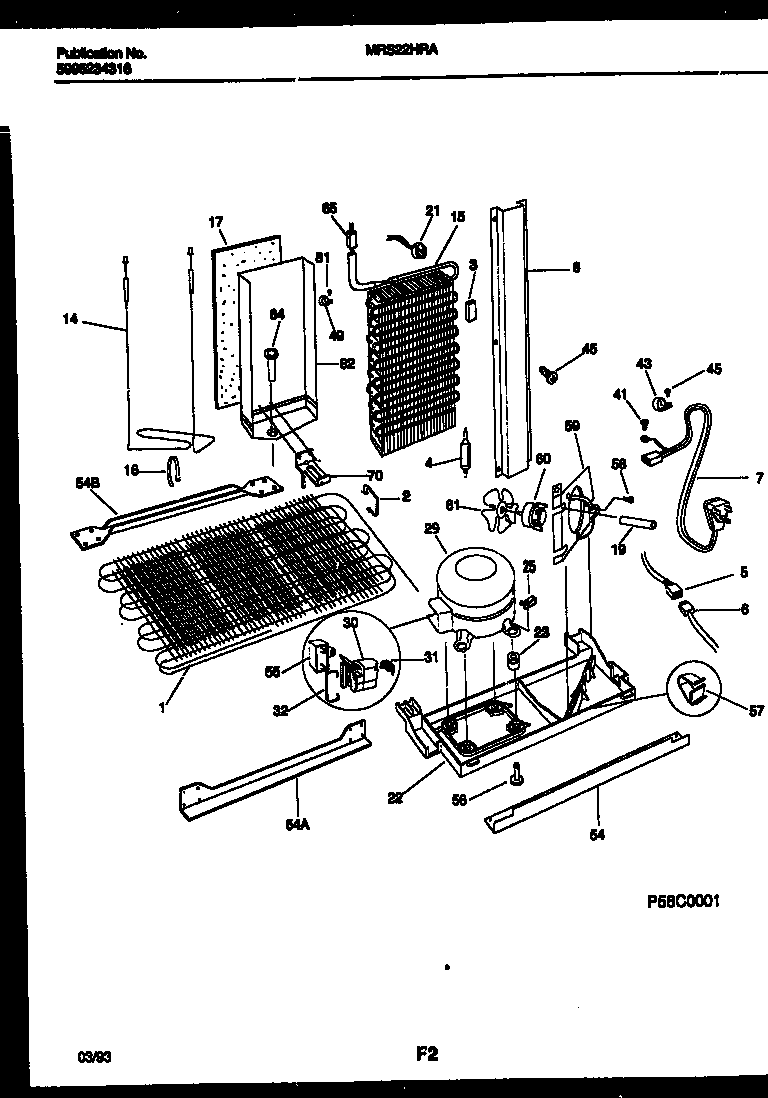

MRS22HRAD0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

MRS22HRAD0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

MRS22HRAD0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1BSPACER TUBE
1ASPACER-COND TUBE,BLACK
1WCI 5303289487
2WCI 5303289029
3ABLOCK-EVAP COIL, STYROFOAM INSUL, LH (NOT ILLUSTRATED)
3WCI 215226501
4WCI 530800027
5BHARNESS-WIRING, FRZR CONTROLS (NOT ILLUSTRATED)
5AHARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATED)
5WCI 215458800
6WCI 215501600
7WCI 215459201
8WCI 5303289033
14WCI 5303289520
15ATUBE-INLET (NOT ILLUSTRATED)
15EVAPORATOR, W/HEAT EXCHANGR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19TUBE-RUBBER
21WCI 215095200
22WCI 5303289030
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 215014200
29WCI 5303917193
30WCI 216008900
315303271616 Frigidaire Refrigerator P1-Overload
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
43B5308000133 Frigidaire Refrigerator Clamp
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
45A5304455852 Frigidaire Refrigerator Screw
49WCI 215324700
54WCI 5303289027
54BWCI 5303289292
54AWCI 5303289311
54C5304500008 Frigidaire Oven Screw
555304464438 Frigidaire Compressor Run Capacitor
56WCI 215014100
57WCI 215073800
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501800
61BGROMMET, SILENCER (NOT ILLUSTRATED)
61AWCI 215004700
61WCI 5303289032
62WCI 215048700
64241957901 Frigidaire Refrigerator Tube-Drain
