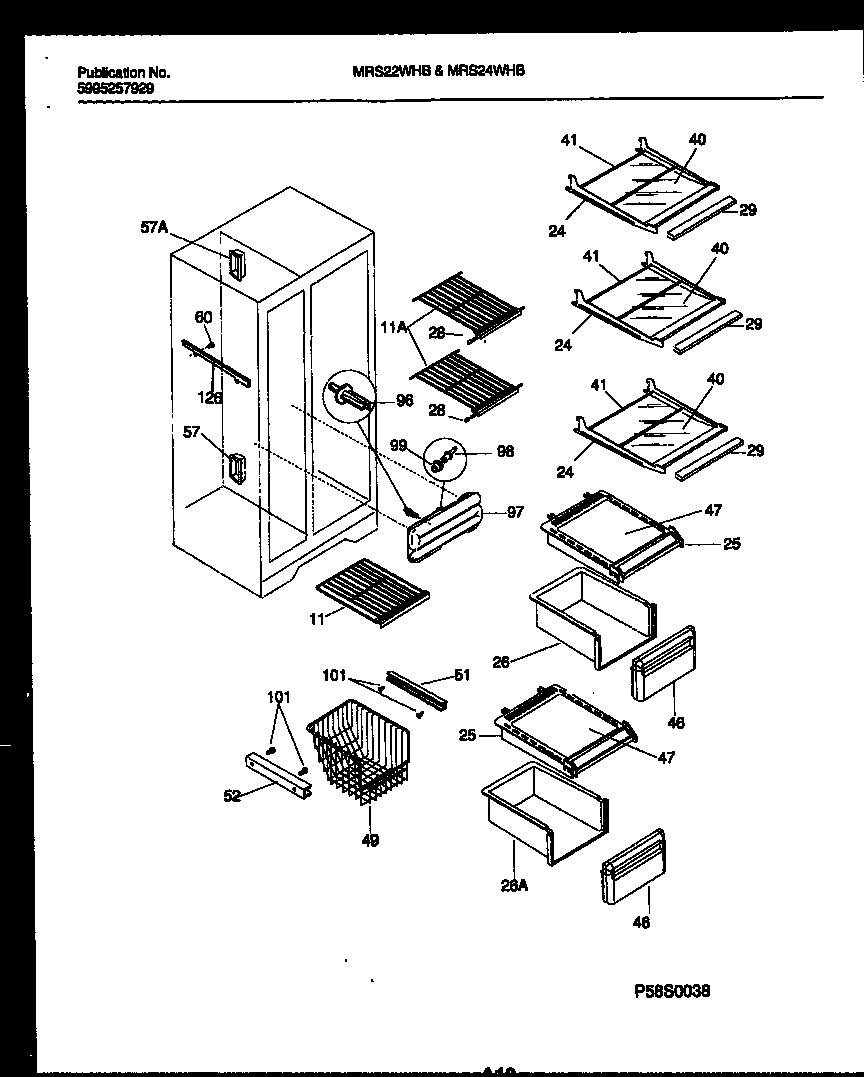

MRS22WHBD0 06 – SHELVES AND SUPPORTS

MRS22WHBD0 06 – SHELVES AND SUPPORTS

Written by

in

MRS22WHBD0 06 – SHELVES AND SUPPORTS

Products

PositionProduct
*11034WCI 215339900
11ASHELF-FREEZER, FIXED WIRE
11WCI 5303289518
11ASPACER, FRZR SHELF (NOT ILLUSTRATED)
24WCI 215919139
25ATRIM-STORAGE PAN CVR,LOWER
25COVER-STORAGE PAN
26A5303289501 Frigidaire Refrigerator Lower Storage Pan Os1
265303289500 Frigidaire Refrigerator Upper Storage Pan
28END CAP-SHELF, PROTECTOR, LOWER FZR SHELF
29WCI 215919515
40WCI 5303300033
41WCI 215919815
46WCI 215042024
47WCI 5303289387
47AWCI 215530500
49WCI 5303289521
51WCI 5303288960
52WCI 215162501
57AHARNESS-WIRING, MODULE/IGNITER (NON-ILLUSTRATED)
57WCI 5303271653
605304455852 Frigidaire Refrigerator Screw
96WCI 215192600
975303918258 Frigidaire Refrigerator P-1 Water Tank Kit
98CONNECTOR – TUBE
99GROMMET-TANK
1015304455650 Frigidaire Refrigerator Screw
126WCI 215205400
126ARAIL-AUGER BUCKET, RH (NOT ILLUSTRATED)
