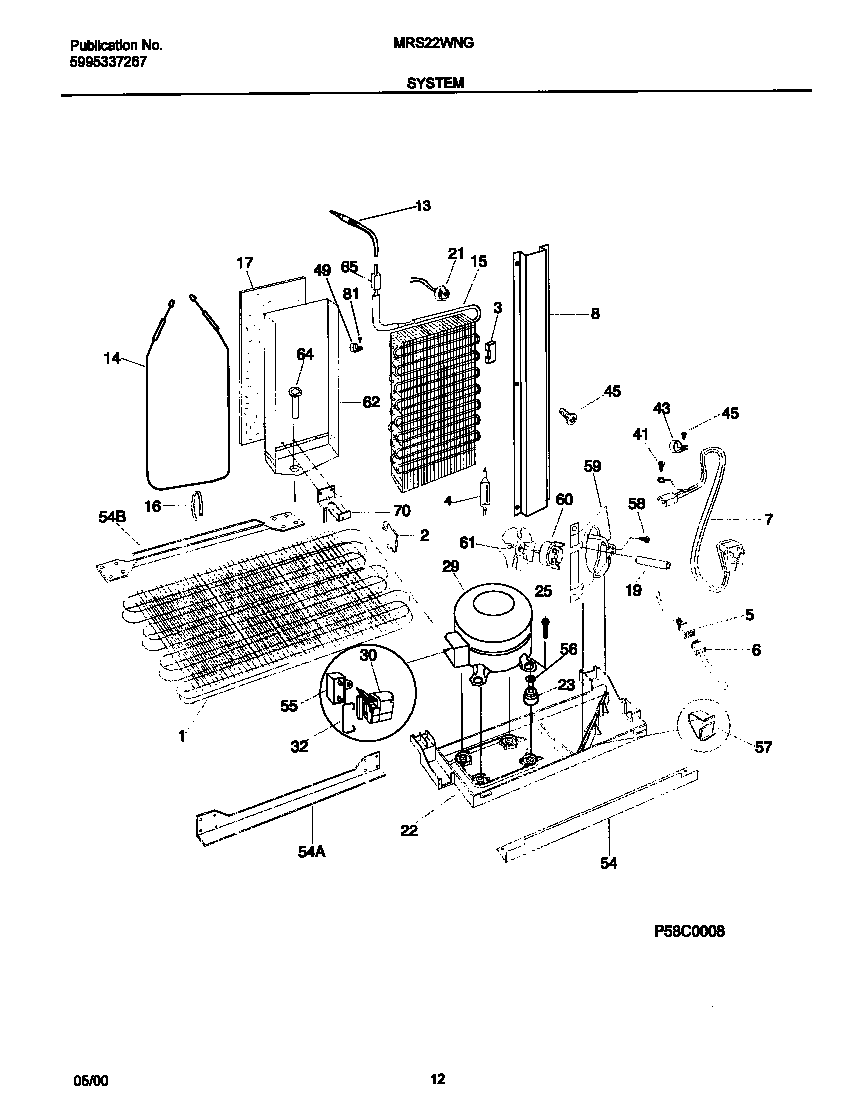

MRS22WNGD6 07 – SYSTEM

MRS22WNGD6 07 – SYSTEM

Written by

in

MRS22WNGD6 07 – SYSTEM

Products

PositionProduct
*36350TUBE-INLET (NOT ILLUSTRATED)
*36347WCI 5304406721
*36355WCI 215732700
*36353WCI 218769200
*36348WIRING HARNESS,REFR CONTROLS
*36349WIRING HARNESS,FRZR CONTROLS
*36345SPACER-COND TUBE,BLACK
*36346SPACER TUBE
*36358HOT TUBE REPAIR KIT, SERVICE
*363545304455852 Frigidaire Refrigerator Screw
*36356WCI 215004700
*363525308000133 Frigidaire Refrigerator Clamp
*36357WCI 215004800
1WCI 218787800
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218959901
6WCI 218960001
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5304415956
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475098 Frigidaire Refrigerator Compressor Kit
30WCI 218721109
32WCI 216649100
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
45SCREW,HEX HD SER WSHR ,8-18 X 0.375
49WCI 215506900
54WCI 5303289027
54WCI 5303289311
54WCI 5303289292
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048703
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
