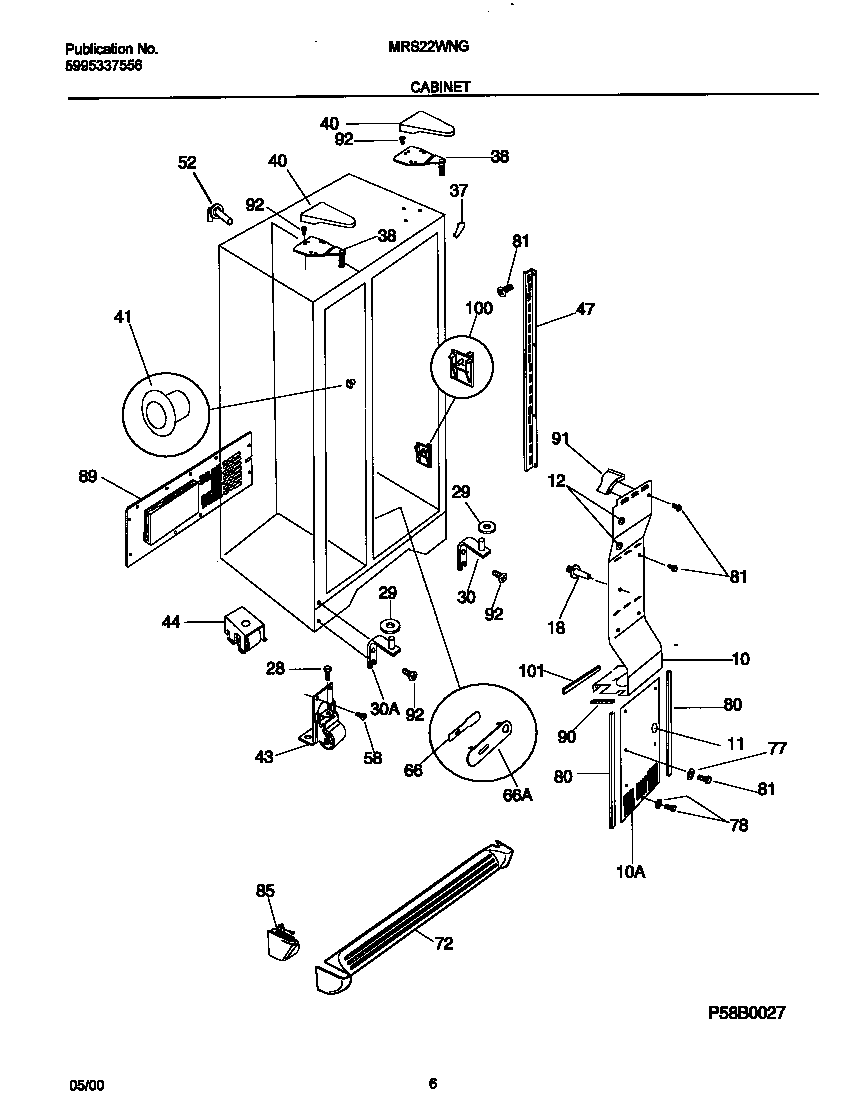

MRS22WNGW1 04 – CABINET

MRS22WNGW1 04 – CABINET

Written by

in

MRS22WNGW1 04 – CABINET

Products

PositionProduct
*79255WCI 5303322647
*79254WCI 5303289036
*79251SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*79256WCI 218663103
*79249WCI 218730800
*79257WCI 218836401
*79252SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
*79246WCI 218871201
*79247WCI 215598900
*79245SUPPORT-AIR DUCT CVR,1.83“ LONG
*79244NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*79260PLUG, BUTTON, CABINET LINER (NI)
*792595303321319 Frigidaire Refrigerator White Touch Up Paint
*792505304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*79248WCI 218730700
*79253WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637602
10WCI 215637401
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30WCI 215009000
37WCI 5303321081
38BBRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
38AWCI 218215213
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359601
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80BWCI 218249802
80AWCI 218249801
815304455650 Frigidaire Refrigerator Screw
85WCI 218359801
89WCI 215176300
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
101BWCI 218663102
101AWCI 215305702
