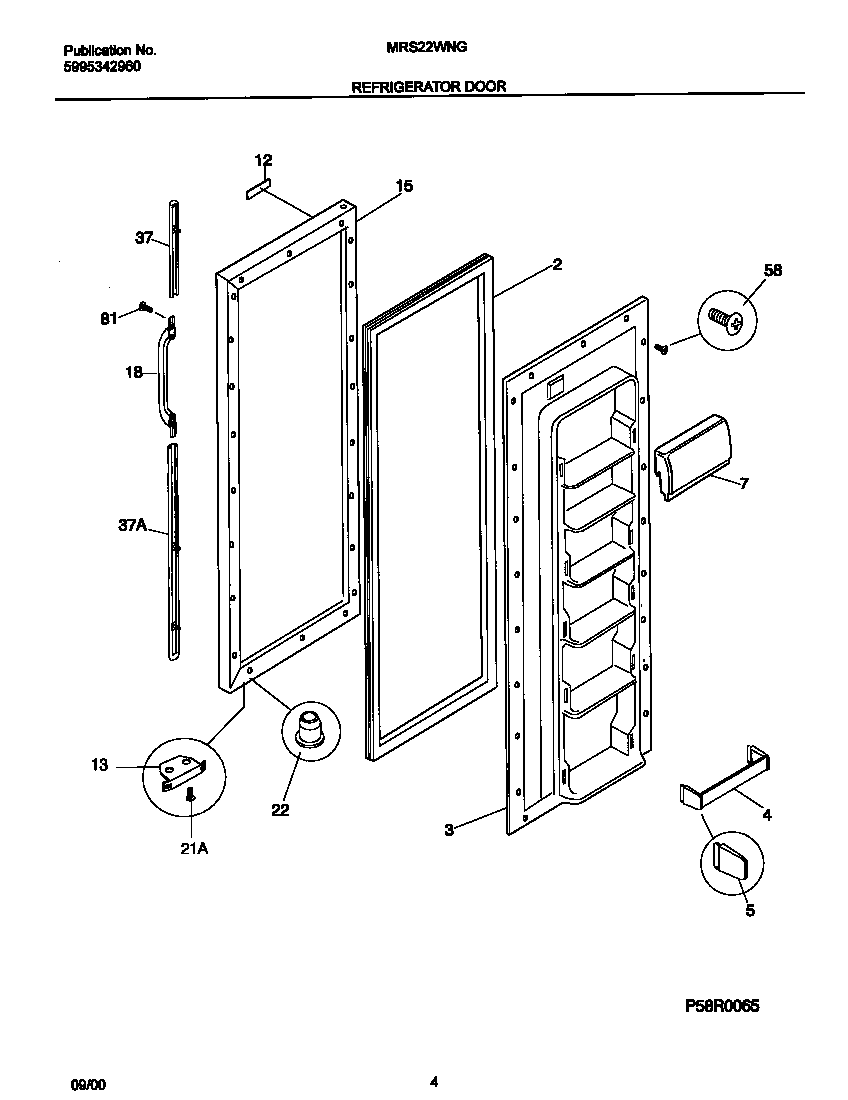

MRS22WNGW7 03 – REFRIGERATOR DOOR

MRS22WNGW7 03 – REFRIGERATOR DOOR

Written by

in

MRS22WNGW7 03 – REFRIGERATOR DOOR

Products

PositionProduct
*15203INSULATION
*15202TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
*15201NAMEPLATE,WHITE
2WCI 215734314
3WCI 215009801
4215366002 Frigidaire Refrigerator Door Wide Rack
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7WCI 215029914
12WCI 218428204
13WCI 5303289522
15WCI 5303917871
18WCI 218668401
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
37WCI 215867082
37WCI 215867083
37WCI 215782300
58218781101 Frigidaire Handle Screw
815304455650 Frigidaire Refrigerator Screw
