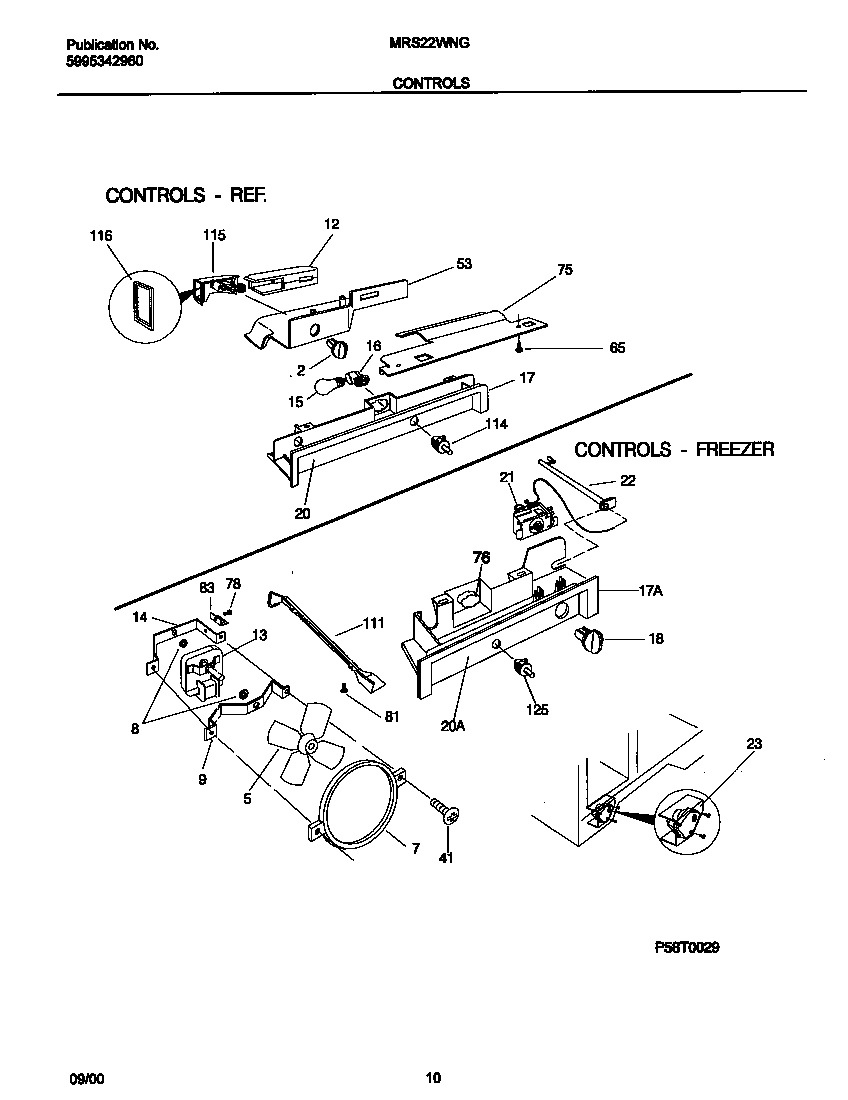

MRS22WNGW7 06 – CONTROLS

MRS22WNGW7 06 – CONTROLS

Written by

in

MRS22WNGW7 06 – CONTROLS

Products

PositionProduct
*152205304455649 Frigidaire Refrigerator Screw
*15218WCI 218731102
*15219COVER-DEFROST TIMER, TOP
*15221SHIELD-DEFROST TIMR,BTM
*15216NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*15217215474201 Frigidaire Refrigerator Washer
2WCI 215028605
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17BSCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
17ACONTROL BOX, FRZR
17WCI 5303296805
18WCI 215051008
20WCI 5303310529
20WCI 5303310528
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415304455651 Frigidaire Refrigerator Screw
53WCI 215809505
65WCI 5303001361
75WCI 218465101
76WCI 218225800
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011505
116WCI 215011400
125WCI 215334201
