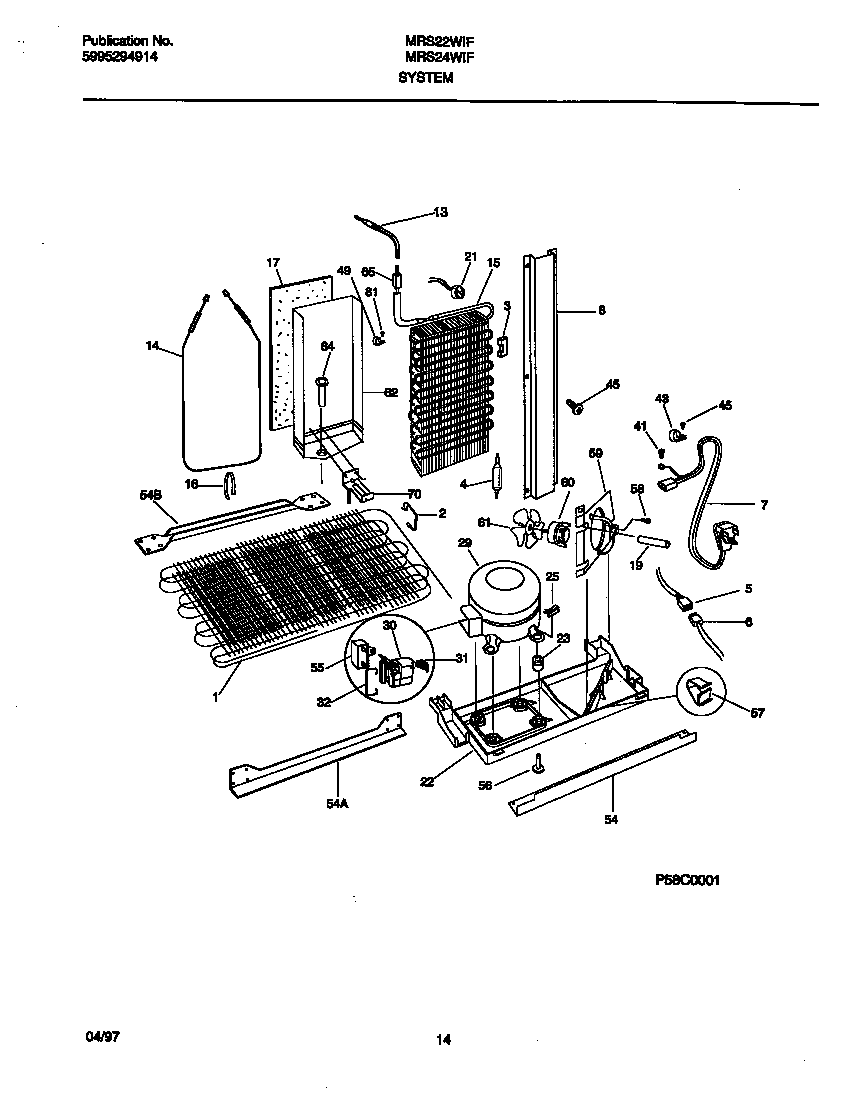

MRS24WIFW0 08 – SYSTEM

Written by

Products

Position	Product
*25892	WCI 5303917166
1	WCI 218787900
1	SPACER TUBE
2	WCI 5303289029
3	WCI 218679602
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5C	WIRING HARNESS,REFR CONTROLS
5B	HARNESS-WIRING, FRZR CONTROLS (NON-ILLUSTRATED)
5A	WCI 218738500
6	WCI 218741500
7	WCI 215459201
8B	SCREW,HEX HD SER WSHR ,8-18 X 0.375
8A	WCI 5303289033
13	WCI 215746800
14	218169802 Frigidaire Refrigerator Defrost Heater
15A	WCI 218691301
15B	TUBE-INLET (NOT ILLUSTRATED)
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	WCI 5303289496
19	WCI 218631200
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 5303289030
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 215014200
29	WCI 5303917933
30	WCI 216008903
31	WCI 5303322093
32	218762900 Frigidaire CLAMP
41	5308000039 Frigidaire Refrigerator Screw
43C	5308000133 Frigidaire Refrigerator Clamp
43A	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45A	5304455651 Frigidaire Refrigerator Screw
45C	WCI 218769200
45D	5304455852 Frigidaire Refrigerator Screw
49	WCI 215506900
54	WCI 5303289311
54	WCI 5303289292
54	WCI 5303289027
55	CAPACITOR-RUN,210-230 VAC ,15 MICROFARAD
56	WCI 215014100
57	WCI 218247300
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59	WCI 5303289031
60	WCI 215501901
61C	WCI 215004800
61B	WCI 215004700
61A	WCI 5303289032
62	WCI 215048701
64	241957901 Frigidaire Refrigerator Tube-Drain
65	WCI 5303289301
70	WCI 5303289041
81	5304455650 Frigidaire Refrigerator Screw
