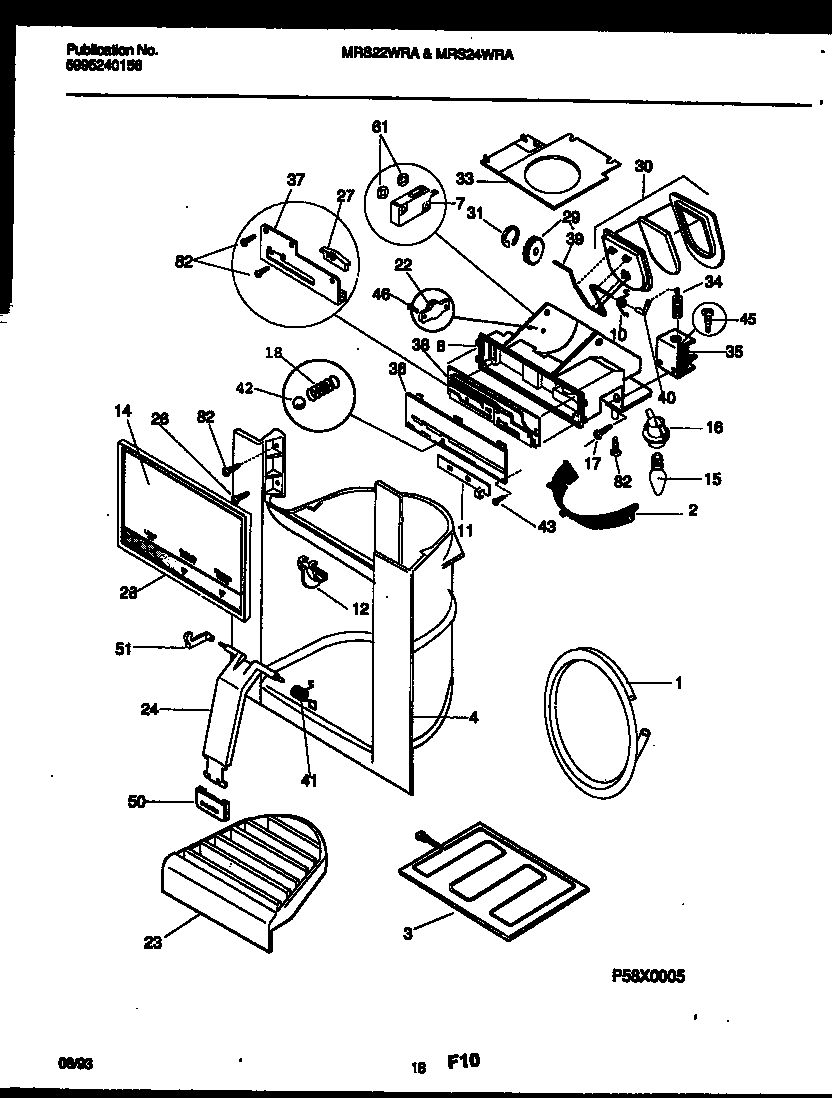

MRS24WRAW0 10 – ICE DOOR, DISPENSER AND WATER TANKS

Products

Position	Product
1	WCI 215294101
1A	CLAMP-SUCTION TUBE (NON-ILLUSTRATED)
1	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
2	WCI 215732118
3	WCI 215484300
4	WCI 215922301
7	WCI 215765600
8	WCI 215763500
10	WCI 215793600
11	WCI 215253300
12	WCI 215627201
14	WCI 215475100
15	WCI 5304506475
16	240548901 Frigidaire Refrigerator P-1 Socket
17	WCI 215630900
18	WCI 215760200
22	WCI 215763700
23	WCI 215447001
24	WCI 215918001
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 215254700
28	WCI 215447101
29	WCI 215764300
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
31	WCI 215764200
33	WCI 215280800
34	WCI 215763600
35	WCI 215764400
36	WCI 215254400
37	WCI 215763400
38A	WCI 215630800
38	WCI 215762200
38C	WCI 215763900
38B	WCI 215631000
39	WCI 215253900
40	WCI 215764100
41	WCI 215917800
42	WCI 215756000
43	WCI 215760300
45	WCI 215762100
46	WCI 215763800
