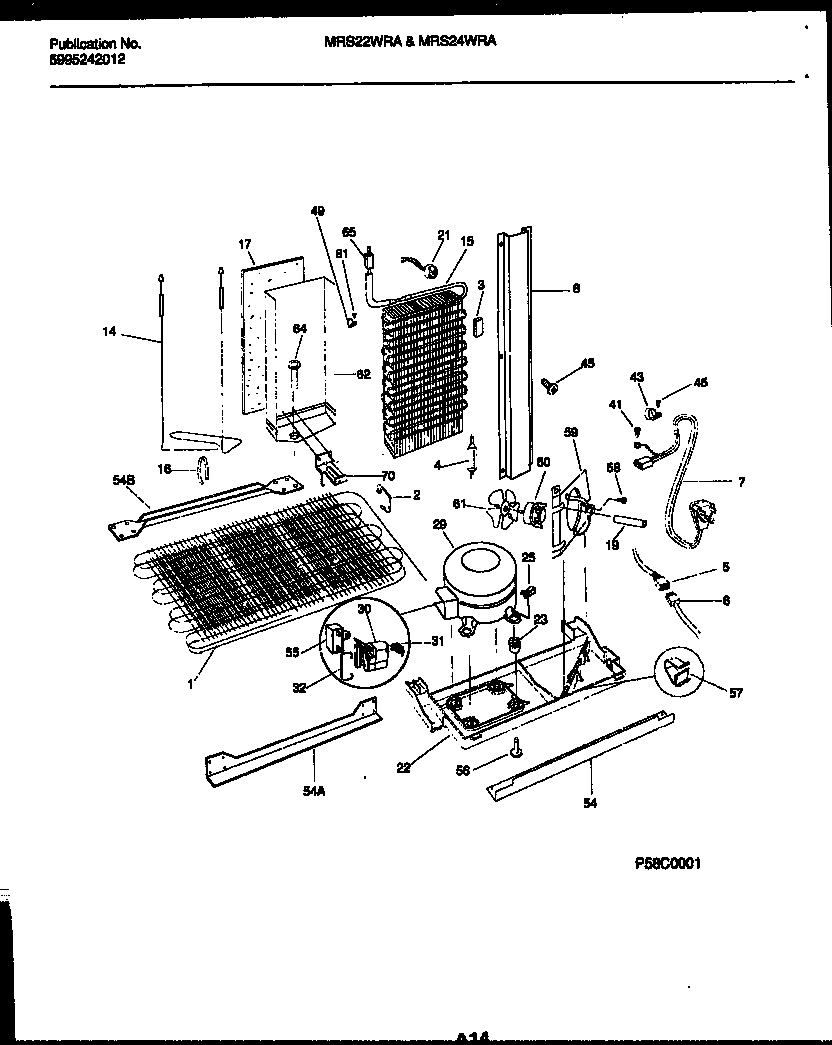

MRS24WRAW1 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1B	SPACER TUBE
1	WCI 215408100
1A	SPACER-COND TUBE,BLACK
2	WCI 5303289029
3A	BLOCK-EVAP COIL, STYROFOAM INSUL, LH (NOT ILLUSTRATED)
3	WCI 215226501
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5A	HARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATED)
5	WCI 215458900
5B	HARNESS-WIRING, FRZR CONTROLS (NOT ILLUSTRATED)
6	WCI 215501700
7	WCI 215459201
8	WCI 5303289033
14	WCI 5303289520
15	EVAPORATOR, W/HEAT EXCHANGR
15A	TUBE-INLET (NOT ILLUSTRATED)
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	WCI 5303289496
19	TUBE-RUBBER
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 5303289030
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 215014200
29	WCI 5303917193
30	WCI 216008900
31	5303271616 Frigidaire Refrigerator P1-Overload
32	WCI 215012000
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
43B	5308000133 Frigidaire Refrigerator Clamp
45A	5304455852 Frigidaire Refrigerator Screw
45	5304455651 Frigidaire Refrigerator Screw
49	WCI 215506900
54B	WCI 5303289292
54A	WCI 5303289311
54A	WCI 215732700
54	WCI 5303289027
55	5304464438 Frigidaire Compressor Run Capacitor
56	WCI 215014100
57	WCI 215073800
