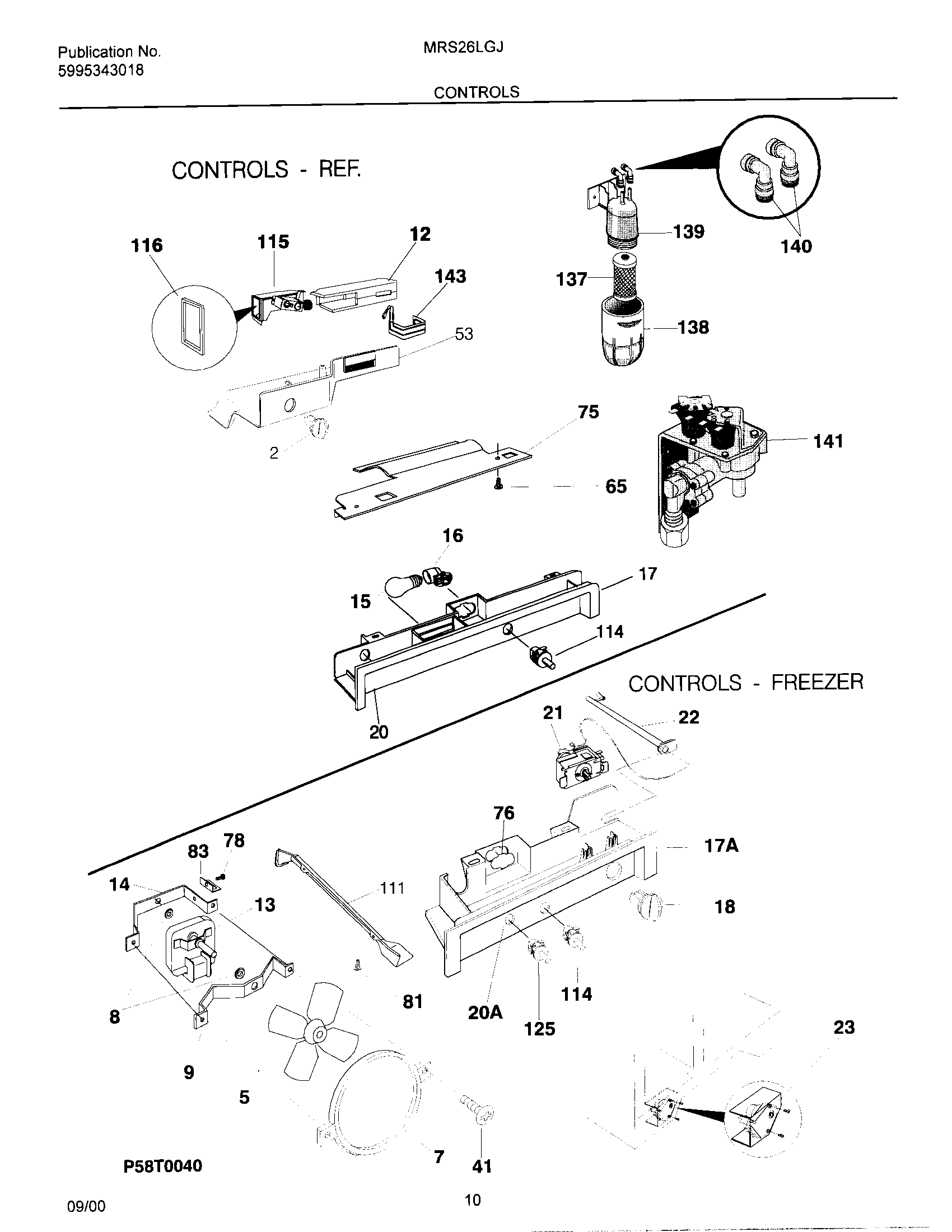

MRS26LGJW2 11 – CONTROLS

MRS26LGJW2 11 – CONTROLS

Written by

in

MRS26LGJW2 11 – CONTROLS

Products

PositionProduct
WIRING HARNESS,FILTER HEATER
2WCI 215028605
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13215474201 Frigidaire Refrigerator Washer
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17WCI 5303296805
17ASCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
17ACONTROL BOX, FRZR
18WCI 5303308568
20WCI 5304411663
20AWCI 5303308611
21WCI 5303300027
22WCI 5303319683
22WCI 218731102
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
235304455649 Frigidaire Refrigerator Screw
23SHIELD-DEFROST TIMR,BTM
23COVER-DEFROST TIMER, TOP
41NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
415308000039 Frigidaire Refrigerator Screw
53WCI 215809512
65WCI 5303001361
75WCI 218465101
76WCI 218225800
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303297842
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011505
116WCI 215011400
125WCI 215334201
137WCI 218904602
138218904301 Frigidaire Refrigerator O-Ring Cup P1
138240434401 Frigidaire Refrigerator Water Filter Cup Primary
139WCI 218893201
140WCI 218518700
141Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
141218832401 Frigidaire Water Inlet Valve
143WCI 218696700
