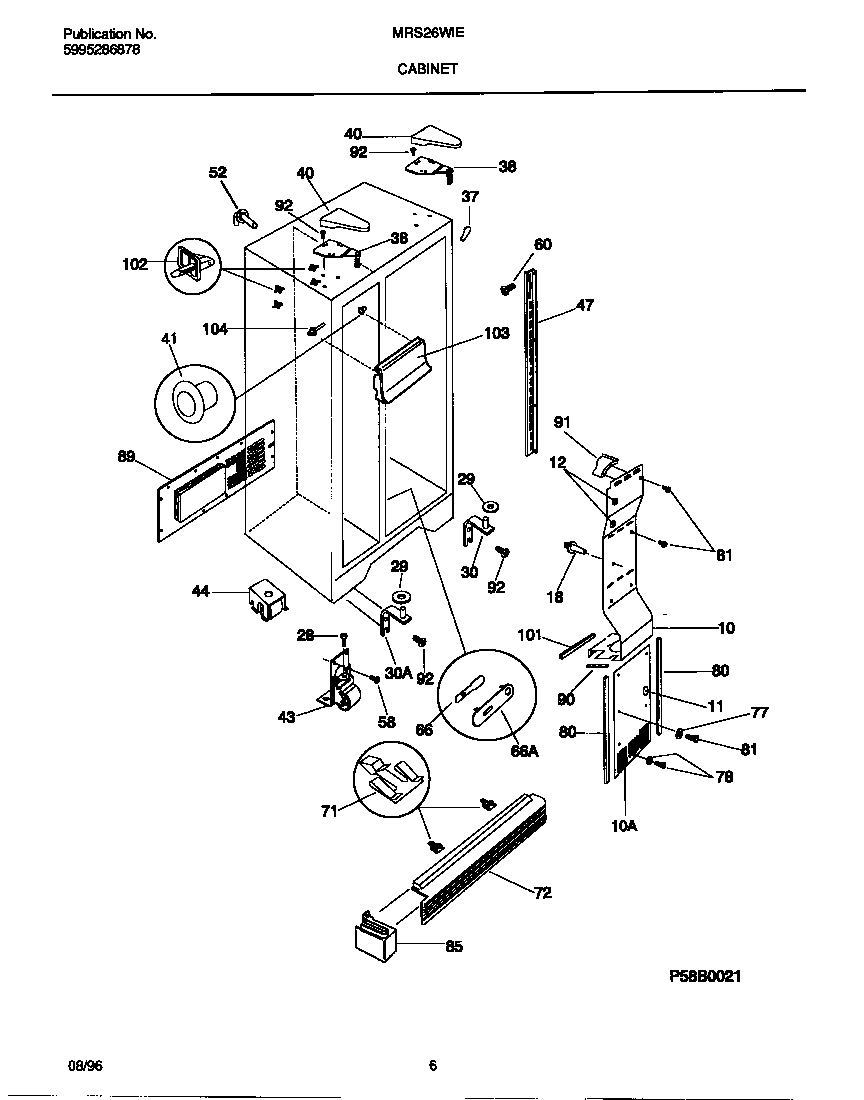

MRS26WIED1 04 – CABINET

MRS26WIED1 04 – CABINET

Written by

in

MRS26WIED1 04 – CABINET

Products

PositionProduct
*93244TOUCH, UP PAINT, ALMOND (NI)
*93243WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637400
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18AWCI 5303289043
18BSUPPORT-AIR DUCT CVR,1.83“ LONG
28WCI 5303289062
29BWCI 215314300
29AWCI 215003200
29CWCI 215598900
30BWCI 218730700
30CWCI 218730900
30AWCI 218730800
30WCI 215009100
30WCI 215008900
37TRIM-CABINET CORNER, ALMOND
38AWCI 218215222
38BWCI 218215224
40WCI 5303318774
41A5304509705 Frigidaire Refrigerator Grommet
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43AWCI 218615300
44WCI 215163900
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
605304455852 Frigidaire Refrigerator Screw
66WCI 218171301
66WCI 215050201
71BSCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
71AWCI 215003300
72WCI 5303295758
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 215003805
89WCI 215176300
90WCI 215022602
91WCI 215177600
92241710601 Frigidaire Refrigerator Screw
101WCI 215305702
102SUPPORT, MOTOR BRKT, & SHELF
103WCI 215413100
104BSCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
104ASUPPORT-ICE ACCESS DR
