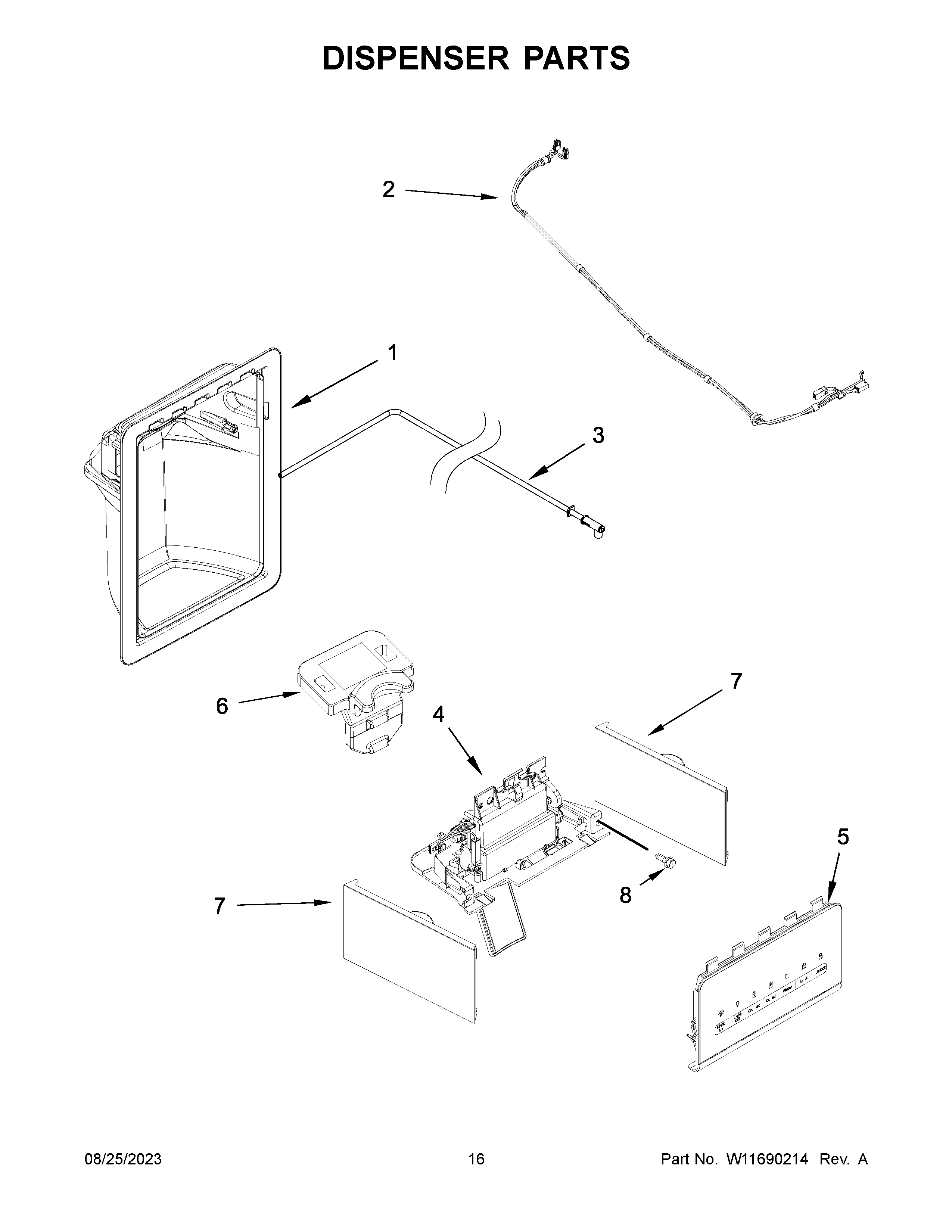

MRSF4036PB00 09 – DISPENSER PARTS

MRSF4036PB00 09 – DISPENSER PARTS

Written by

in

MRSF4036PB00 09 – DISPENSER PARTS

Products

PositionProduct
1HOUSING, DISPENSER (NOT SERVICED)
2W10913117 Whirlpool Refrigerator Wire Harness
3W11163765 Whirlpool Refrigerator Fitting
4DOOR-ICE
4AW11678833 Whirlpool Ice Door
5W11575724-includeCORE Whirlpool Panel-Ui+Core
6W11397167 Whirlpool Refrigerator Retainer
7CW11311800 Whirlpool Refrigerator Cover
7BW11311799 Whirlpool Refrigerator Cover
7W11183319 Whirlpool Front Cover
7AW11183311 Whirlpool Front Cover
8WP8281163 Whirlpool Refrigerator Screw
