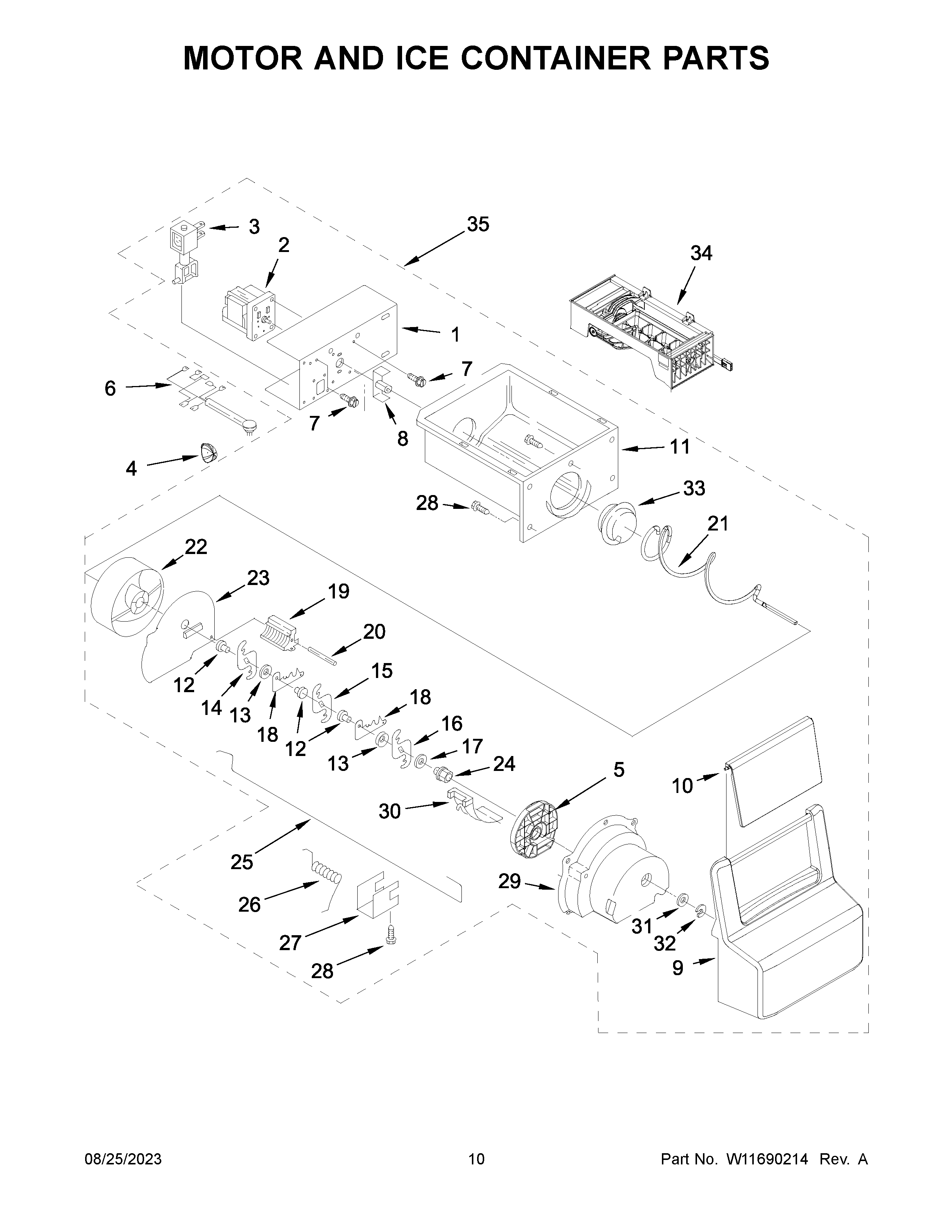

MRSF4036PZ00 06 – MOTOR AND ICE CONTAINER PARTS

MRSF4036PZ00 06 – MOTOR AND ICE CONTAINER PARTS

Written by

in

MRSF4036PZ00 06 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1W11715972 Whirlpool Bracket
2W11671282 Whirlpool Refrigerator Ice Auger Motor
3WP2152713 Whirlpool Refrigerator Solenoid
4MODULE
5W10138206 Whirlpool Refrigerator Spacer
6W11676779 Whirlpool Dispensing Harness
7WP489399 Whirlpool Refrigerator Screw
8COUPLING AUGER MOTOR
9W11427433 Whirlpool Cover
10W11661892 Whirlpool Refrigerator Ice Door
11WPW10670845 Whirlpool Refrigerator Ice Container
12W11032812 Whirlpool Refrigerator Spacer
13W11032808 Whirlpool Refrigerator Spacer
14W10278731 Whirlpool Refrigerator Blade
15W10278732 Whirlpool Refrigerator Blade
16W10278733 Whirlpool Refrigerator Blade
18W10181990 Whirlpool Refrigerator Blade
19W10138203 Whirlpool Refrigerator Blade Block
20489229 Whirlpool Refrigerator Roll Pin
21WPW10295082 Whirlpool Refrigerator Ice Auger
224388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
23W10852691 Whirlpool Refrigerator Baffle
24WP1119018 Whirlpool Refrigerator Bearing
25W11596045 Whirlpool Refrigerator Control Arm
261119020 Whirlpool Refrigerator Spring
271119021 Whirlpool Refrigerator Clip
28WP488787 Whirlpool Refrigerator Screw
29WPW10185018 Whirlpool Refrigerator Housing
30WP1119017 Whirlpool Refrigerator Deflector
31489234 Whirlpool Refrigerator Washer
32WP489236 Whirlpool Refrigerator Ring
33W10749708 Whirlpool Refrigerator Coupling
34W11700250 Whirlpool Icemaker Assembly
35WPW10558423 Whirlpool Refrigerator Ice Container
