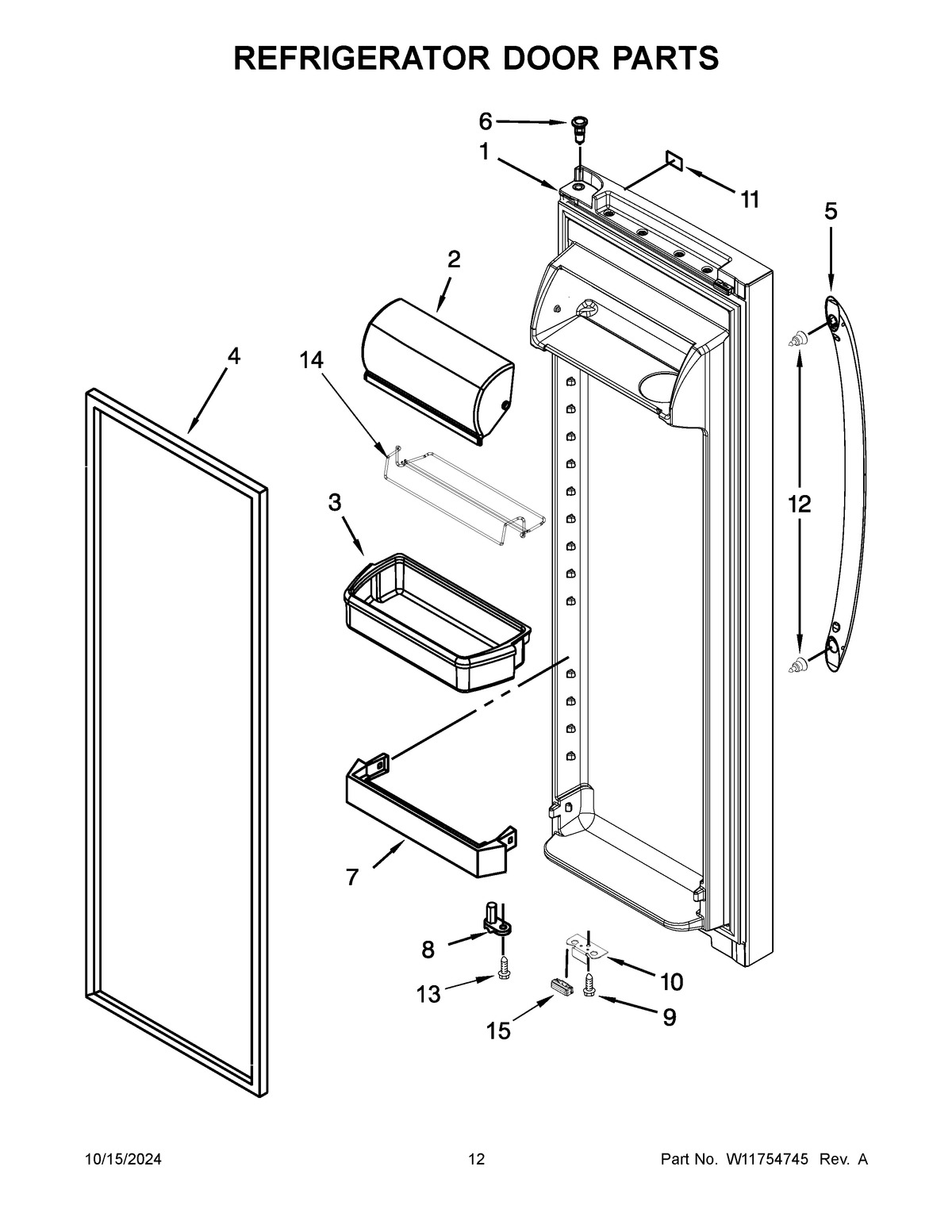

MRSF4036PZ02 07 – REFRIGERATOR DOOR PARTS

MRSF4036PZ02 07 – REFRIGERATOR DOOR PARTS

Written by

in

MRSF4036PZ02 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11652980 Whirlpool FIP Door
2WP2256101 Whirlpool Dairy Door
3W11174793 Whirlpool Refrigerator Upper Door Shelf Bin
4WPW10136734 Whirlpool Refrigerator Door Gasket
5W11720842 Whirlpool Handle
6WP2182181 Whirlpool Refrigerator Thimble
7WP2309941 Whirlpool Refrigerator Door Bar Trim
8W11397972 Whirlpool Refrigerator Door Cam
9SCREW
10W11557261 Whirlpool Refrigerator Bracket Assembly
11W11648754 Whirlpool Nameplate
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13WPW10296804 Whirlpool Refrigerator Screw
14W11517647 Whirlpool Refrigerator Shelf CANT
15W11573367 Whirlpool Refrigerator Door Bumper
