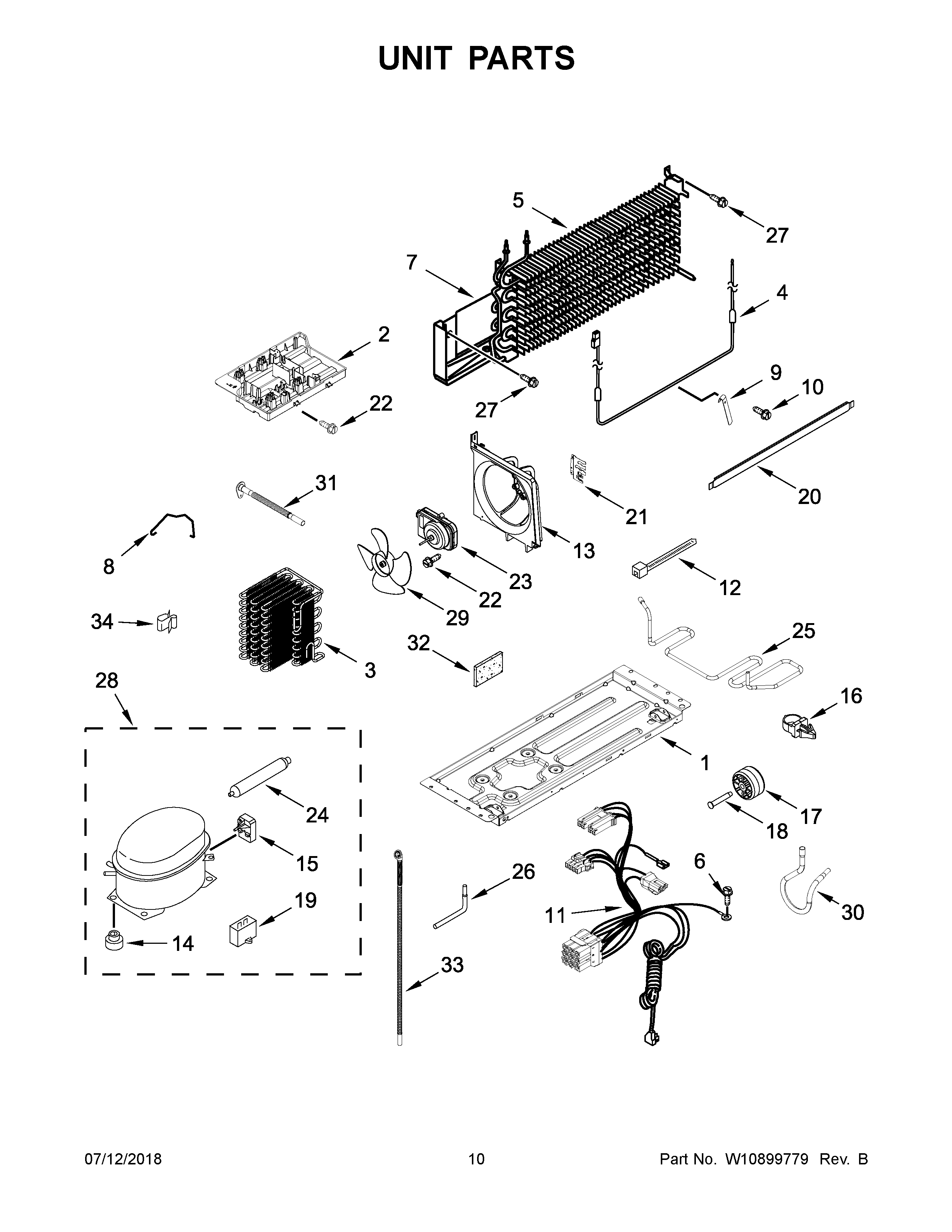

MRT118FFFE00 06 – UNIT PARTSadmin2025-04-26T13:05:10+00:00MRT118FFFE00 06 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| 1 | SUPPORT PLATE, COMPRESSOR |
| 2 | TRAY, EVAPORATOR |
| 3 | CONDENSER |
| 4 | MAY W10316428 |
| 5 | ASSEMBLY, EVAPORATOR |
| 6 | MAY 488500 |
| 7 | MAY W10314195 |
| 8 | MAY W10174384 |
| 9 | MAY 2258429 |
| 10 | MAY 489478 |
| 11 | HARNESS, UNIT |
| 12 | MAY 2263990 |
| 13 | BRACKET, FAN |
| 14 | GROMMET, CONDENSER |
| 15 | DEVICE, START |
| 16 | Clip, Harness (1) |
| 17 | MAY W10475495 |
| 18 | MAY 2179826 |
| 19 | MAY W10590083 |
| 20 | MAY W10300902 |
| 21 | BRACKET, EVAPORATOR |
| 22 | MAY W10622701 |
| 23 | MAY W10527155 |
| 24 | DRIER |
| 25 | TUBE, DISCHARGE |
| 26 | MAY 2212848 |
| 27 | MAY 489442 |
| 28 | COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29) |
| 29 | MAY W10817071 |
| 30 | TUBE, SUCTION |
| 31 | EXTENSION, DRAIN TUBE |
| 32 | MAY 2215468 |
| 33 | TUBE, DRAIN |
| 34 | MAY 2326941 |
