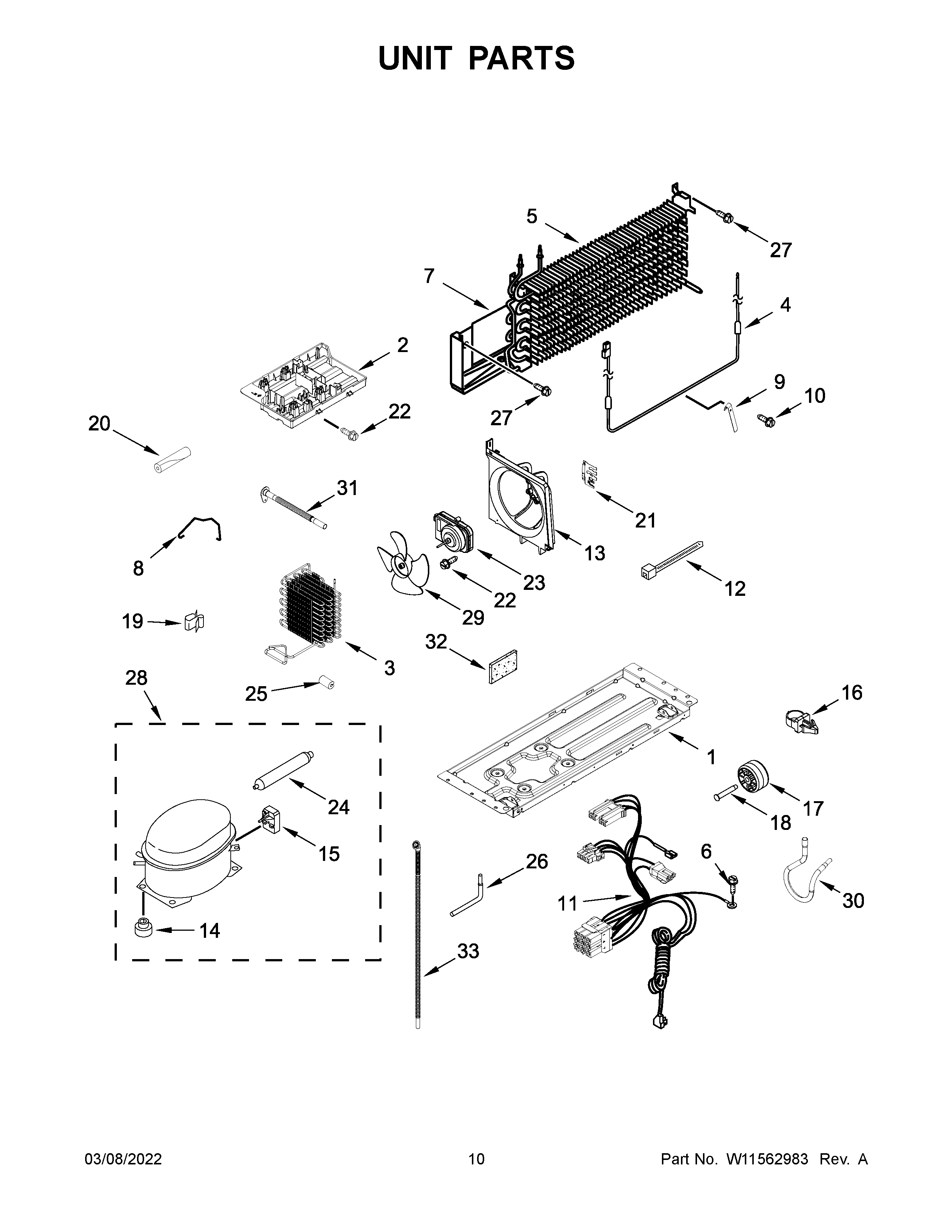

MRT118FFFE06 06 – UNIT PARTS

Products

Position	Product
NI	WPL ARI08B20594E14F645289EE9390CC1289DE
1	W10624648 Whirlpool Base Unit
2	W10633582 Whirlpool Refrigerator Evaporator Tray
3B	W11506623 Whirlpool Refrigerator Coupler
3	W11512423 Whirlpool Refrigerator Condenser
4	W11562215 Whirlpool Refrigerator Heater
5	W11562258 Whirlpool Refrigerator Evaporator
5A	W11504419 Whirlpool Microwave Coupler
6	WP489128 Whirlpool Refrigerator Screw
7	W11562216 Whirlpool Shield
8	W11577799 Whirlpool Refrigerator Clip
9	HEAT PROBE
10	WP489478 Whirlpool Refrigerator Screw
11	W11611445 Whirlpool Refrigerator Wire Harness
12	WPW10339879 Whirlpool Wire Tie
13	W11736795 Whirlpool Air Baffle
14	W11678963 Whirlpool Grommet
15	W11547180 Whirlpool Refrigerator Start Device
16	2219077 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	W10812039 Whirlpool Clip
20	2264838 Whirlpool Refrigerator Sleeve
21	BRACKET, EVAPORATOR
22	W10829281 Whirlpool Refrigerator Screw
23	W11127829 Whirlpool Refrigerator Condenser Motor
24A	W11504445 Whirlpool Refrigerator Coupler
24	W11109499 Whirlpool Refrigerator Tube
24B	W11504449 Whirlpool Refrigerator Coupler
25	W10852725 Whirlpool Refrigerator Grommet
26	W11661102 Whirlpool Tube
27	WP489442 Whirlpool Refrigerator Screw
28	COMPRESSOR
28B	W11504431 Whirlpool Microwave Coupler
28C	COUPLER
28A	W11504415 Whirlpool Refrigerator Coupler
29	W11193484 Whirlpool Fan Blade
30	W11562211 Whirlpool Tube
31	W11383479 Whirlpool Extension Assembly
32	W11553819 Whirlpool Refrigerator Insulation
33	W10633573 Whirlpool Refrigerator Drain Tube
