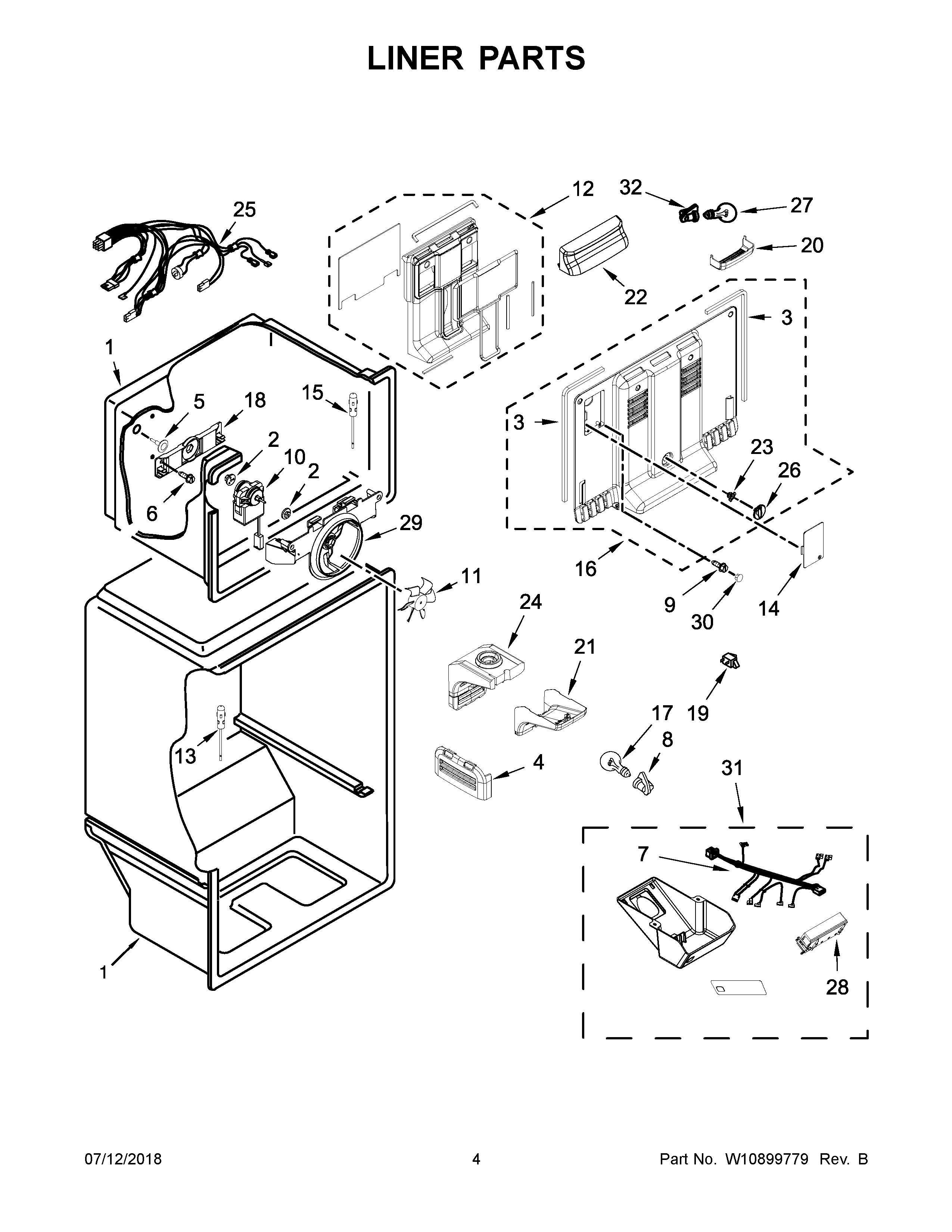

MRT118FFFM00 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	GASKET, EVAPORATOR COVER
4	COVER, AIR FILTER
5	MAY 941839
6	Screw
7	WIRE ASSEMBLY, CONTROL BOX
8	Socket, Light
9	MAY 8281232
10	MAY 2315539
11	MAY 2200509
12	ASSEMBLY, EVAPORATOR PLENUM
13	THERMISTOR, REFRIGERATOR
14	COVER, HOLE
15	THERMISTOR
16	COVER, EVAPORATOR
17	LAMP, LED
18	Bracket, Fan Back
19	MAY 1118894
20	LENS, LIGHT
21	COVER, AIR DIFFUSER
22	HOUSING, FREEZER LIGHTING
23	BAFFLE, AIR MANUAL
24	ASSEMBLY, AIR DIFFUSER
25	ASSEMBLY, EVAPORATOR FAN WIRE (INCLUDES THERMAL FUSE)
26	KNOB, AIR CONTROL
27	LAMP, LED
28	MAY W11176904
29	MAY W10321162
30	COVER, SCREW
31	MAY W11184513
32	SOCKET, LIGHT
