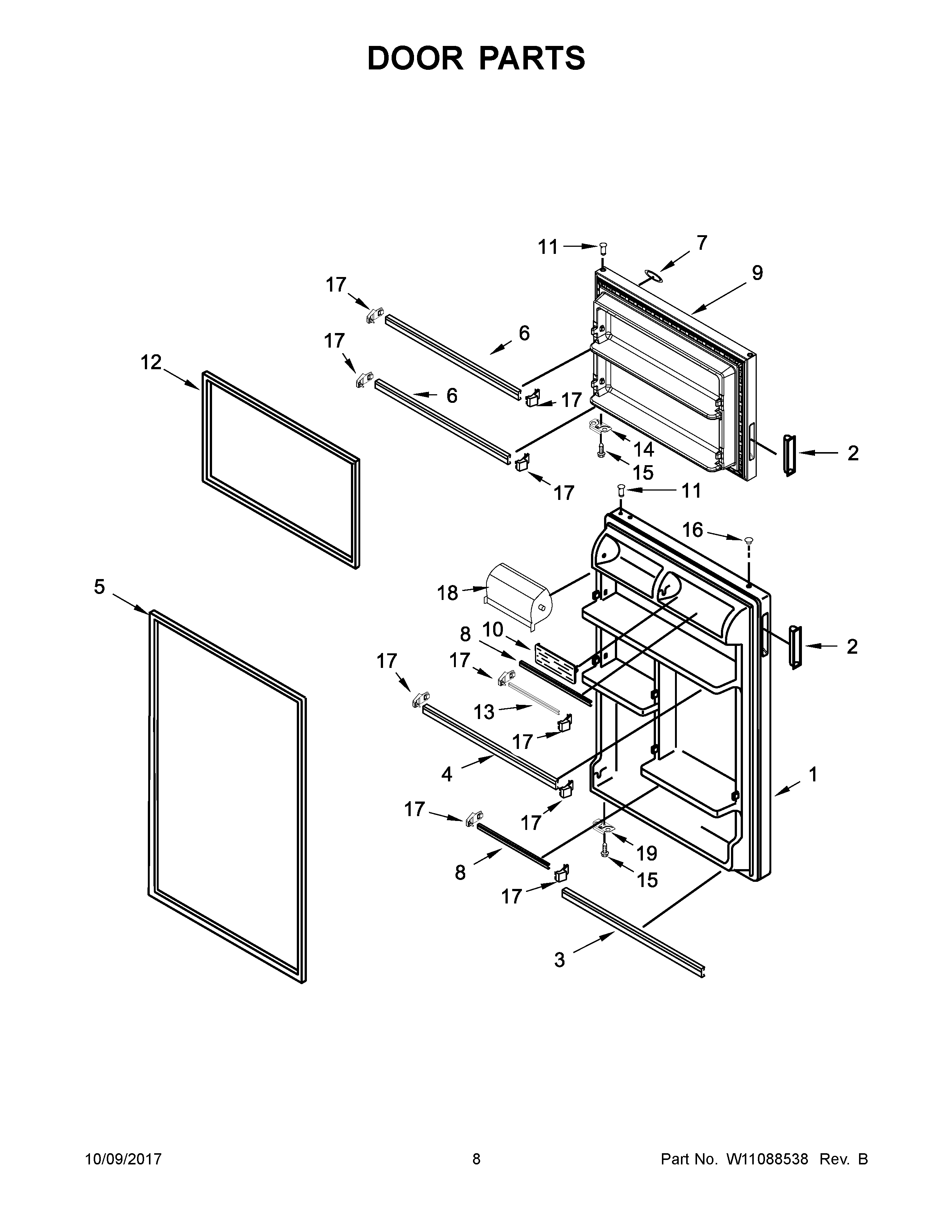

MRT118FFFM01 05 – DOOR PARTSadmin2025-04-26T13:16:09+00:00MRT118FFFM01 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | REFRIGERATOR DOOR (INCLUDES DOOR GASKET) (WHITE) |
| 1A | REFRIGERATOR DOOR (INCLUDES DOOR GASKET) (BLACK) |
| 1B | REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) (MONOCHROMATIC) |
| 1C | REFRIGERATOR DOOR (INCLUDES DOOR GASKET) (STAINLESS) |
| 2 | HANDLE, DOOR (WHITE) |
| 2A | HANDLE CUP (BLACK) |
| 2B | MAY W10240002 |
| 3 | TRIM, DOOR |
| 4 | TRIM, DOOR |
| 5 | GASKET, DOOR (WHITE) |
| 5A | GASKET, DOOR (BLACK) |
| 5B | GASKET, DOOR (GREY) |
| 6 | TRIM, DOOR |
| 7 | BADGE |
| 8 | TRIM, DOOR |
| 9C | FREEZER DOOR (INCLUDES DOOR GASKET) (STAINLESS) |
| 9A | FREEZER DOOR (INCLUDES DOOR GASKET) (BLACK) |
| 9 | FREEZER DOOR (INCLUDES DOOR GASKET) (WHITE) |
| 9B | FREEZER DOOR (INCLUDES ILLUSTRATION 12) (MONOCHROMATIC) |
| 10 | DOOR, FLIP UP |
| 11 | MAY 2262054 |
| 12B | GASKET, DOOR (GREY) |
| 12A | GASKET, DOOR (BLACK) |
| 12 | GASKET, DOOR (WHITE) |
| 13 | TRIM, SHELF DOOR |
| 14 | MAY 2189202 |
| 15 | MAY 488921 |
| 16A | Hole Plug (Black) |
| 16 | MAY 2212648 |
| 16B | PLUG, HOLE (GREY) |
| 17 | END CAP, TRIM |
| 18 | DOOR, COMPARTMENT |
| 19 | BRACKET, DOOR STOP |
