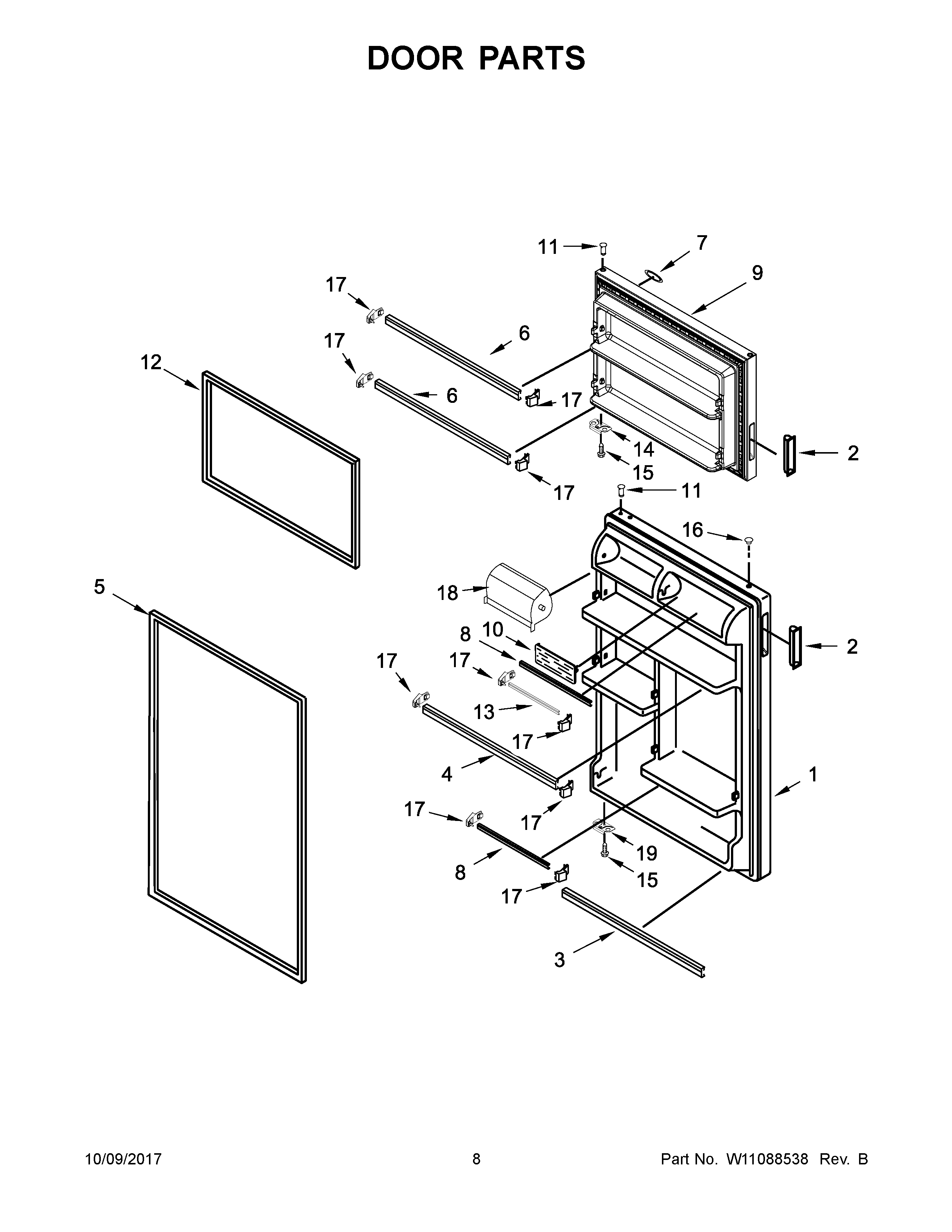

MRT118FFFZ01 05 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES DOOR GASKET) (WHITE)
1A	REFRIGERATOR DOOR (INCLUDES DOOR GASKET) (BLACK)
1B	REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) (MONOCHROMATIC)
1C	REFRIGERATOR DOOR (INCLUDES DOOR GASKET) (STAINLESS)
2	HANDLE, DOOR (WHITE)
2A	HANDLE CUP (BLACK)
2B	MAY W10240002
3	TRIM, DOOR
4	TRIM, DOOR
5	GASKET, DOOR (WHITE)
5A	GASKET, DOOR (BLACK)
5B	GASKET, DOOR (GREY)
6	TRIM, DOOR
7	BADGE
8	TRIM, DOOR
9C	FREEZER DOOR (INCLUDES DOOR GASKET) (STAINLESS)
9A	FREEZER DOOR (INCLUDES DOOR GASKET) (BLACK)
9	FREEZER DOOR (INCLUDES DOOR GASKET) (WHITE)
9B	FREEZER DOOR (INCLUDES ILLUSTRATION 12) (MONOCHROMATIC)
10	DOOR, FLIP UP
11	MAY 2262054
12B	GASKET, DOOR (GREY)
12A	GASKET, DOOR (BLACK)
12	GASKET, DOOR (WHITE)
13	TRIM, SHELF DOOR
14	MAY 2189202
15	MAY 488921
16A	Hole Plug (Black)
16	MAY 2212648
16B	PLUG, HOLE (GREY)
17	END CAP, TRIM
18	DOOR, COMPARTMENT
19	BRACKET, DOOR STOP
