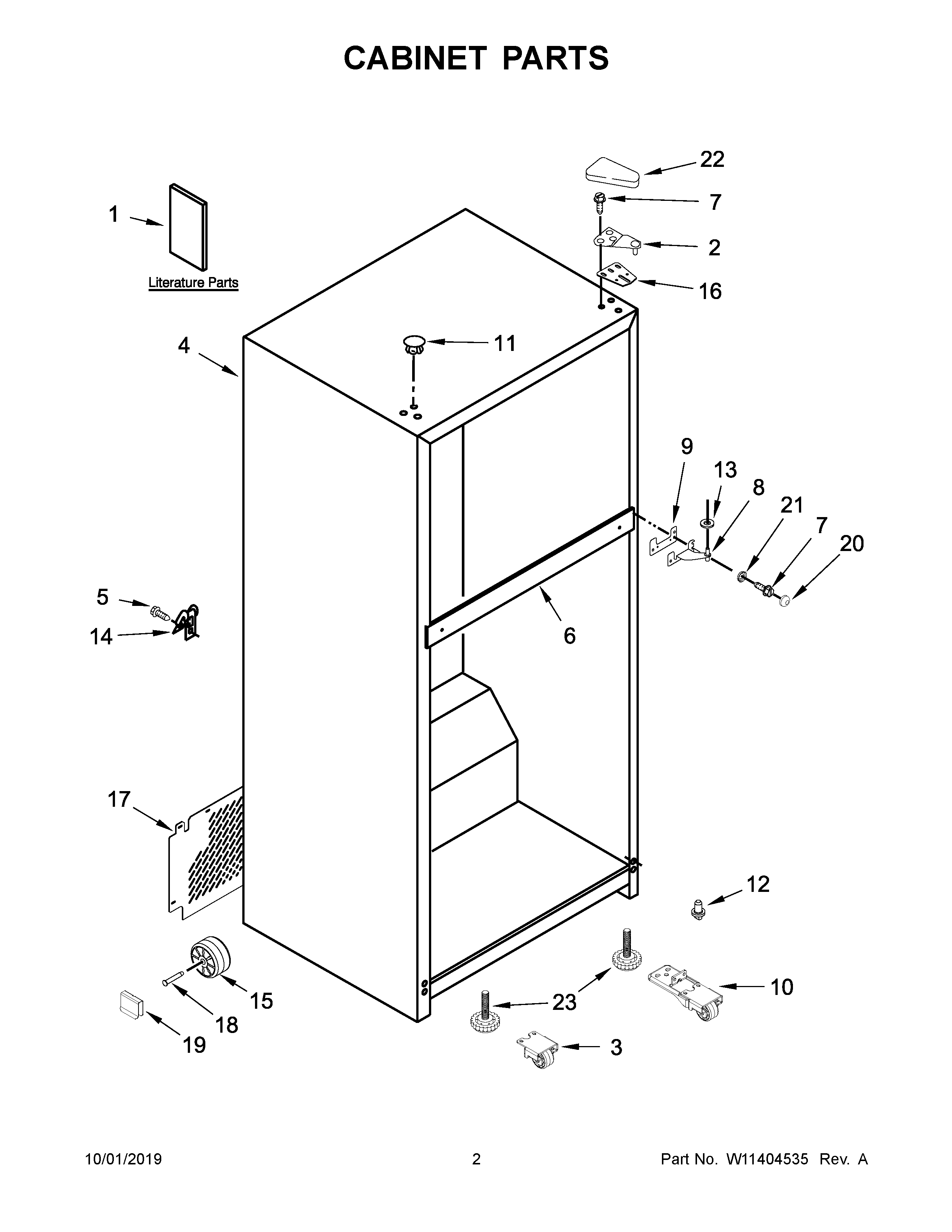

MRT118FFFZ05 02 – CABINET PARTS

MRT118FFFZ05 02 – CABINET PARTS

Written by

in

MRT118FFFZ05 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1TECH SHEET
1AUSE AND CARE GUIDE
2MAY 2261963
3ASSEMBLY, ROLLER
5MAY 489442
6LINER (NOT A SERVICEABLE PART)
7MAY 489497
8MAY 2254618
9MAY 2183852
10LOWER HINGE AND ROLLER ASSEMBLY
11HOLE PLUG (GREY)
12HINGE PIN
13WASHER, PLASTIC
14MAY 549193
15MAY W10475495
16SHIM, TOP HINGE
17COVER, UNIT
18Screw
19CLIP, ROLLER
20CAP, DOME (GREY)
21CAP, WASHER DOME
22COVER, HINGE (GREY)
23LEVELER
