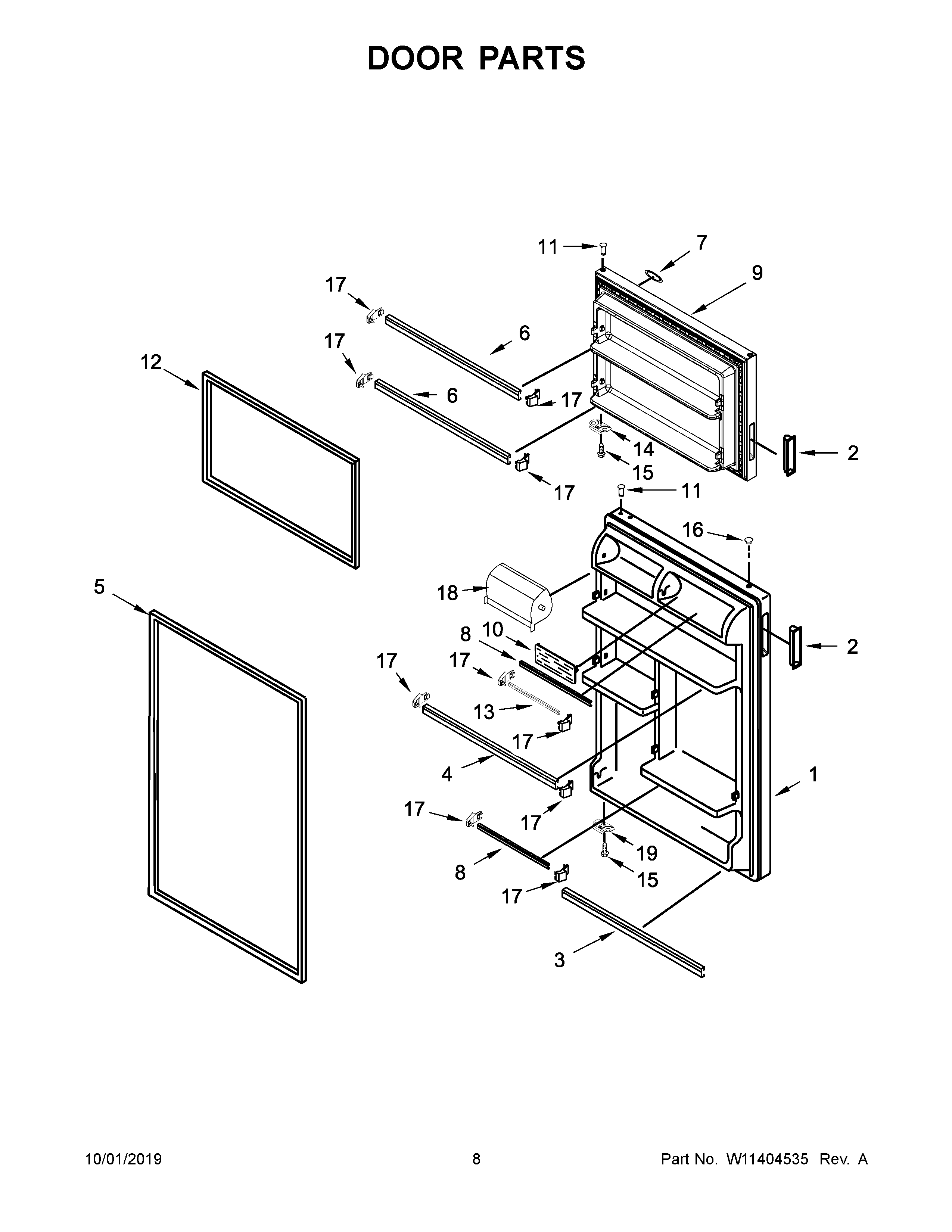

MRT118FFFZ05 05 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) (MONOCHROMATIC)
2MAY W10240002
3TRIM, DOOR
4TRIM, DOOR
5GASKET, DOOR (GREY)
6TRIM, DOOR
7BADGE
8TRIM, DOOR
9FREEZER DOOR (INCLUDES ILLUSTRATION 12) (MONOCHROMATIC)
10DOOR, FLIP UP
11MAY 2262054
12GASKET, DOOR (GREY)
13TRIM, SHELF DOOR
14MAY 2189202
15MAY 488921
16PLUG, HOLE (GREY)
17END CAP, TRIM
18DOOR, COMPARTMENT
19BRACKET, DOOR STOP
