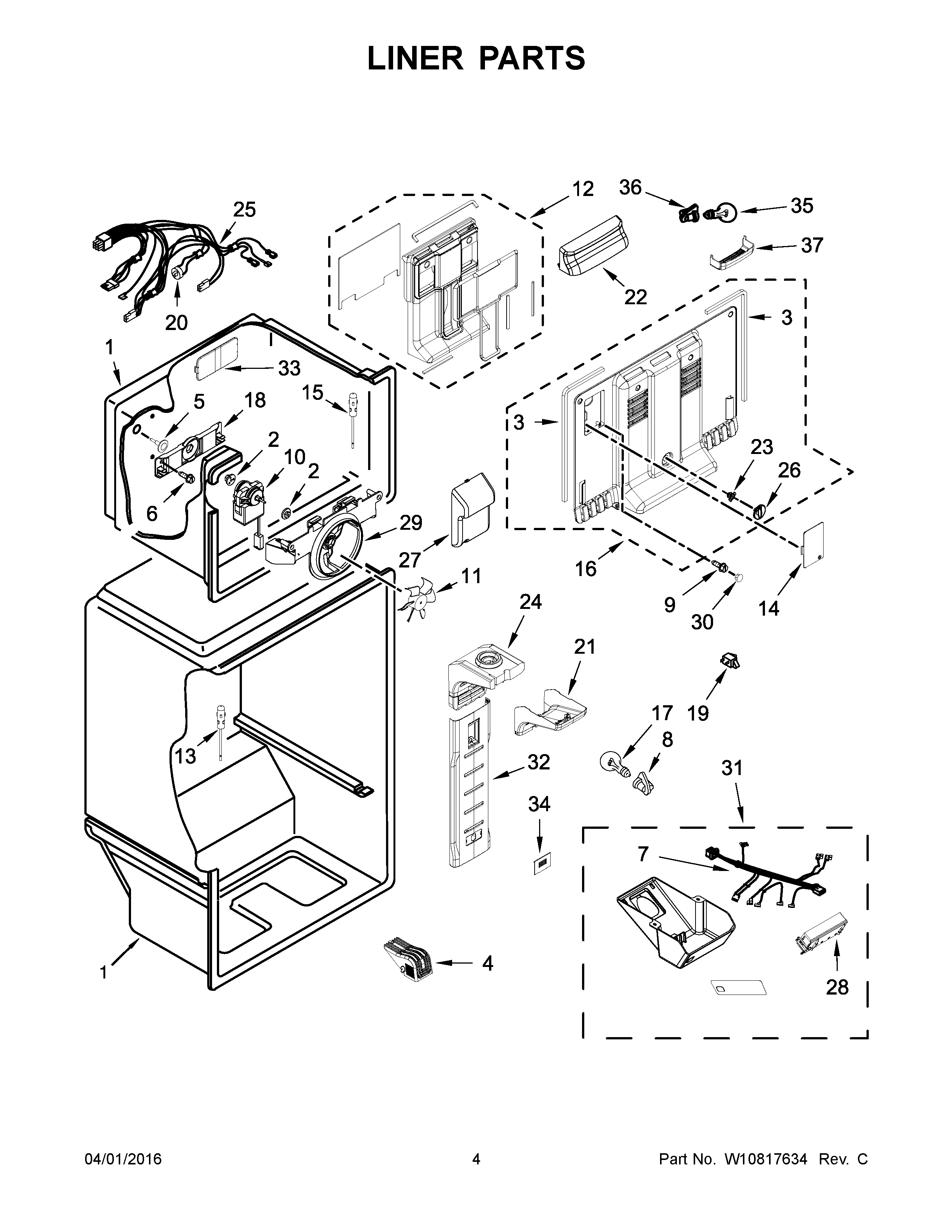

MRT118FZEE00 03 – LINER PARTS

MRT118FZEE00 03 – LINER PARTS

Written by

in

MRT118FZEE00 03 – LINER PARTS

Products

Position	Product
2	MAY 2197380
3	GASKET, EVAPORATOR COVER
4	MAY W10628684
5	MAY 941839
6	Screw
7	MAY W10637672
8	Socket, Light
9	MAY 8281232
10	MAY 2315539
11	MAY 2200509
12	ASSEMBLY, EVAPORATOR PLENUM
13	THERMISTOR, REFRIGERATOR
14	COVER, HOLE
15	THERMISTOR, EVAPORATOR
16	COVER, EVAPORATOR
17	MAY W10820003
18	Bracket, Fan Back
19	MAY 1118894
20	LINER (NOT A SERVICEABLE PART)
21	COVER, AIR DIFFUSER
22	HOUSING, FREEZER LIGHTING
23	BAFFLE, AIR MANUAL
24	MAY W10677734
25	MAY W10646206
26	KNOB, AIR CONTROL
27	MAY W10339203
28	MAY W10674683
29	MAY W10321162
30	COVER, SCREW
31	MAY W10674685
32	MAY W10705785
33	CUP, SCREW
34	GRILLE, AIR FILTER BOTTOM
35	LAMP, LED
36	SOCKET, LIGHT
37	LENS, LIGHT
