MRT118FZEH00 05 – DOOR PARTS

MRT118FZEH00 05 – DOOR PARTS

Written by

in

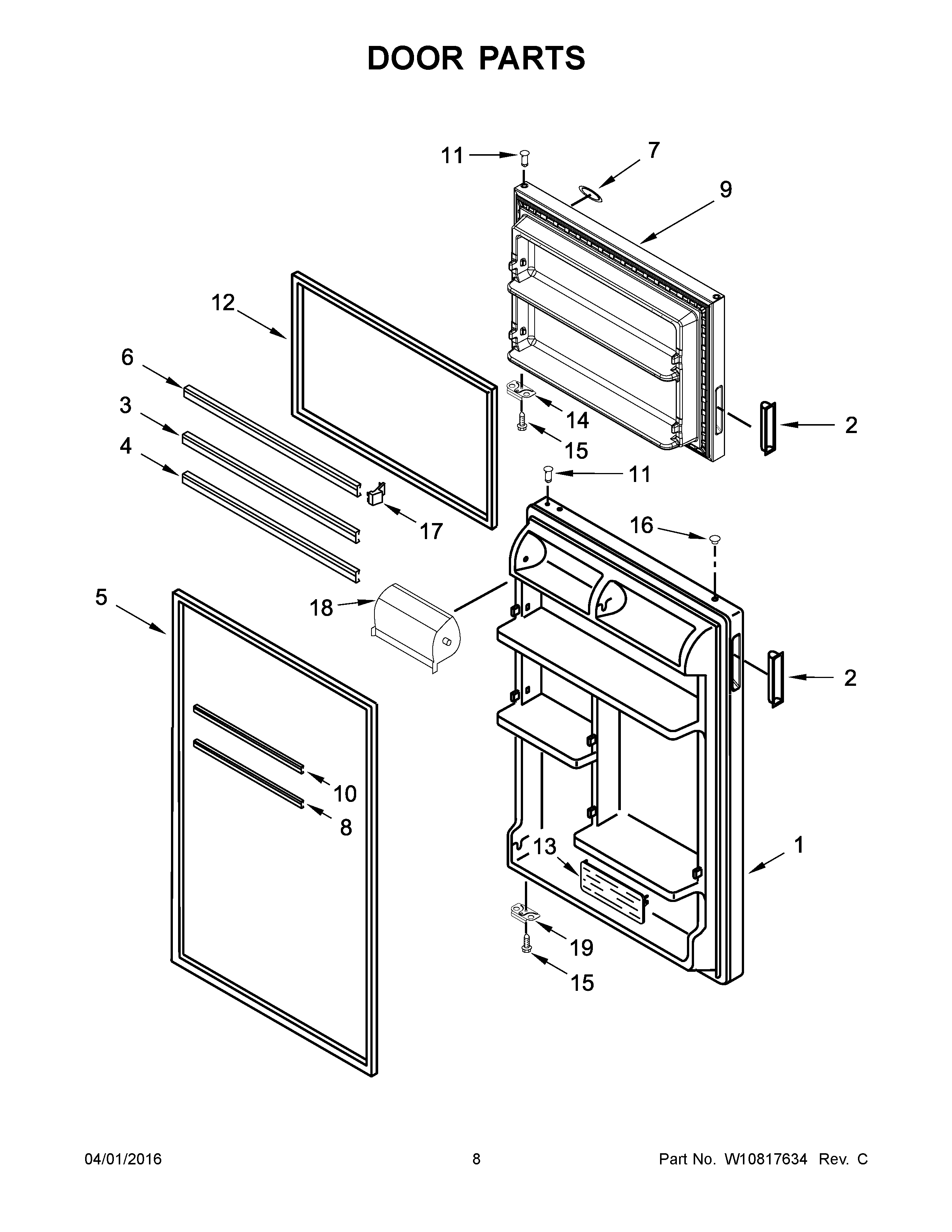

MRT118FZEH00 05 – DOOR PARTS

Products

PositionProduct
1AREFRIGERATOR DOOR (INCLUDES DOOR GASKET) (BLACK)
1REFRIGERATOR DOOR (INCLUDES DOOR GASKET) (WHITE)
1BREFRIGERATOR DOOR (INCLUDES DOOR GASKET) (STAINLESS)
2HANDLE, DOOR (WHITE)
2AHANDLE CUP (BLACK)
2BMAY W10240002
3TRIM, SHELF DOOR
4TRIM, DOOR
5GASKET, DOOR (WHITE)
5AGASKET, DOOR (BLACK)
5BMAY W10638687
6TRIM, DOOR
7BADGE
8TRIM, DOOR
9AFREEZER DOOR (INCLUDES DOOR GASKET) (BLACK)
9BFREEZER DOOR (INCLUDES DOOR GASKET) (STAINLESS)
9FREEZER DOOR (INCLUDES DOOR GASKET) (WHITE)
10TRIM, DOOR
11MAY 2262054
12BMAY W10638686
12AGASKET, DOOR (BLACK)
12GASKET, DOOR (WHITE)
13DOOR, FLIP UP
14MAY 2189202
15MAY 488921
16BPLUG, HOLE (GREY)
16AHole Plug (Black)
16MAY 2212648
17END CAP, TRIM
18DOOR, COMPARTMENT
19BRACKET, DOOR STOP
