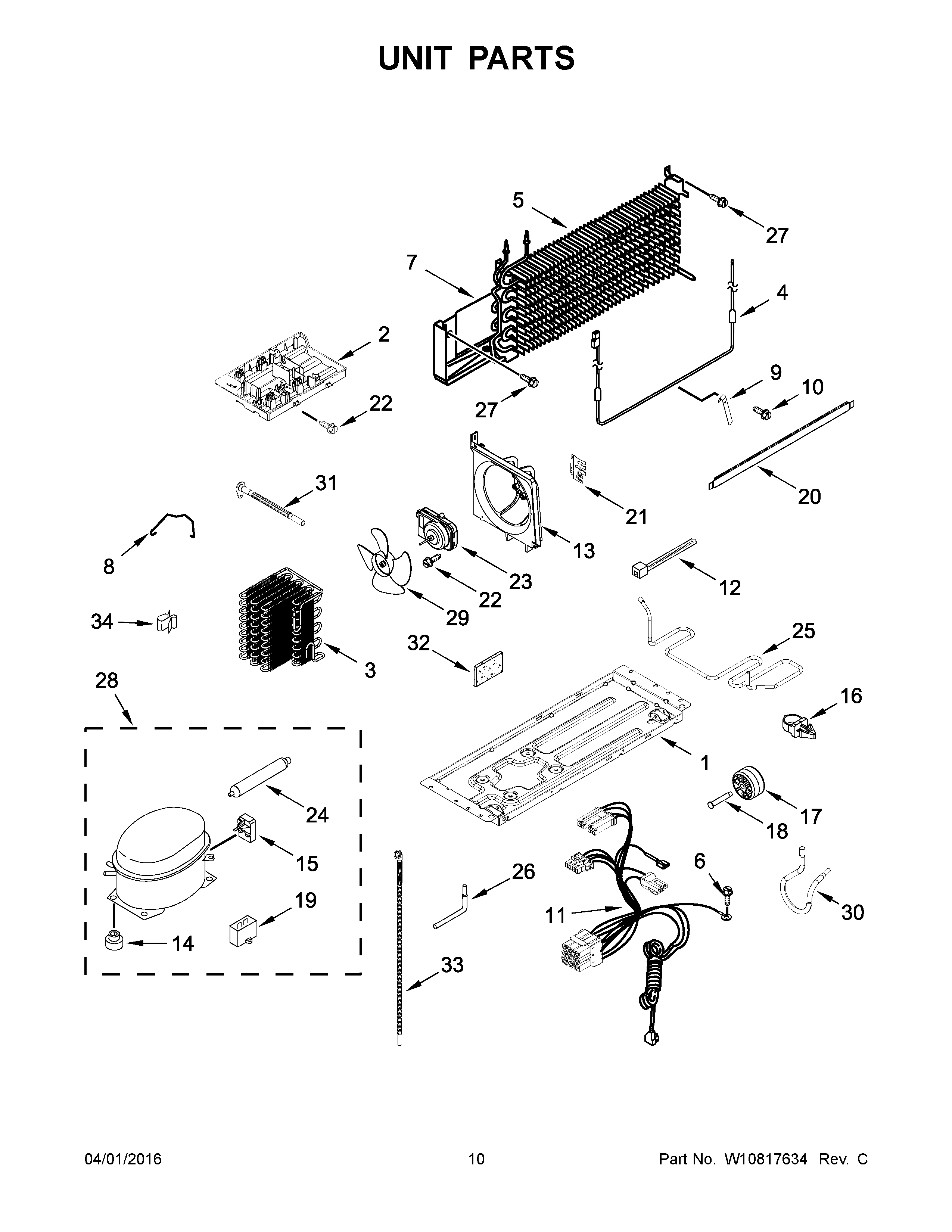

MRT118FZEH00 06 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
1	SUPPORT PLATE, COMPRESSOR
2	TRAY, EVAPORATOR
3	CONDENSER
4	MAY W10316428
5	ASSEMBLY, EVAPORATOR
6	MAY 488500
7	MAY W10314195
8	MAY W10174384
9	MAY 2258429
10	MAY 489478
11	HARNESS, UNIT
12	MAY 2263990
13	BRACKET, FAN
14	MAY 2183042
15	DEVICE, START
16	Clip, Harness (1)
17	MAY W10475495
18	MAY 2179826
19	MAY W10590083
20	MAY W10300902
21	BRACKET, EVAPORATOR
22	MAY W10622701
23	MAY W10527155
24	DRIER
25	TUBE, DISCHARGE
26	MAY 2212848
27	MAY 489442
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	MAY W10139483
30	TUBE, SUCTION
31	EXTENSION, DRAIN TUBE
32	MAY 2215468
33	TUBE, DRAIN
34	MAY 2326941
