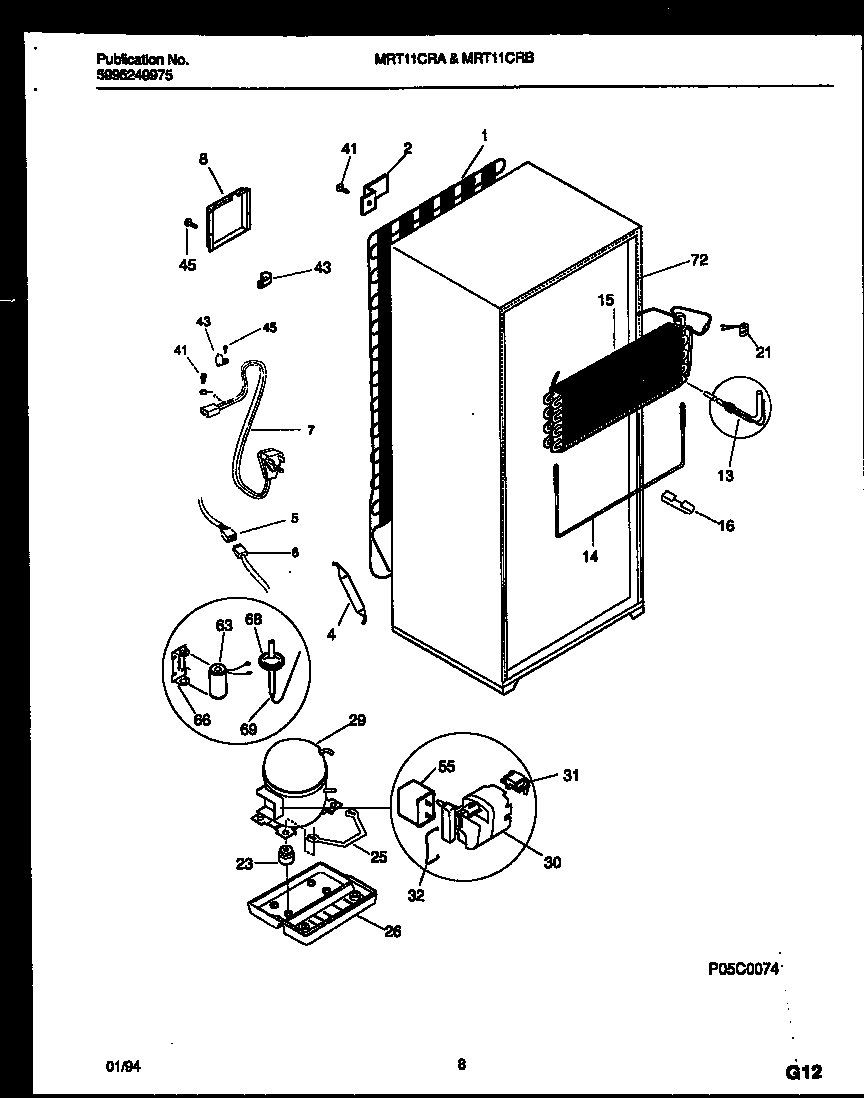

MRT11CRBD0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

MRT11CRBD0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

MRT11CRBD0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1A5303017691 Frigidaire Refrigerator Spacer-Tube
1WCI 215670500
2BRACKET, MOUNTIN, CONDENSER, (4)
2AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 215921000
6WCI 215257005
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 218028700
14WCI 5303301061
15WCI 215690800
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25CLIP-COMPRESSOR MTG
26WCI 218017100
29WCI 5303917249
30WCI 216008901
31WCI 5303295345
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
43A5308000133 Frigidaire Refrigerator Clamp
45A5304455852 Frigidaire Refrigerator Screw
455304455651 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
63CAPACITOR ASSY, START, W/BRACKET 66
66WCI 215886600
69WCI 215116300
72WCI 5308011624
