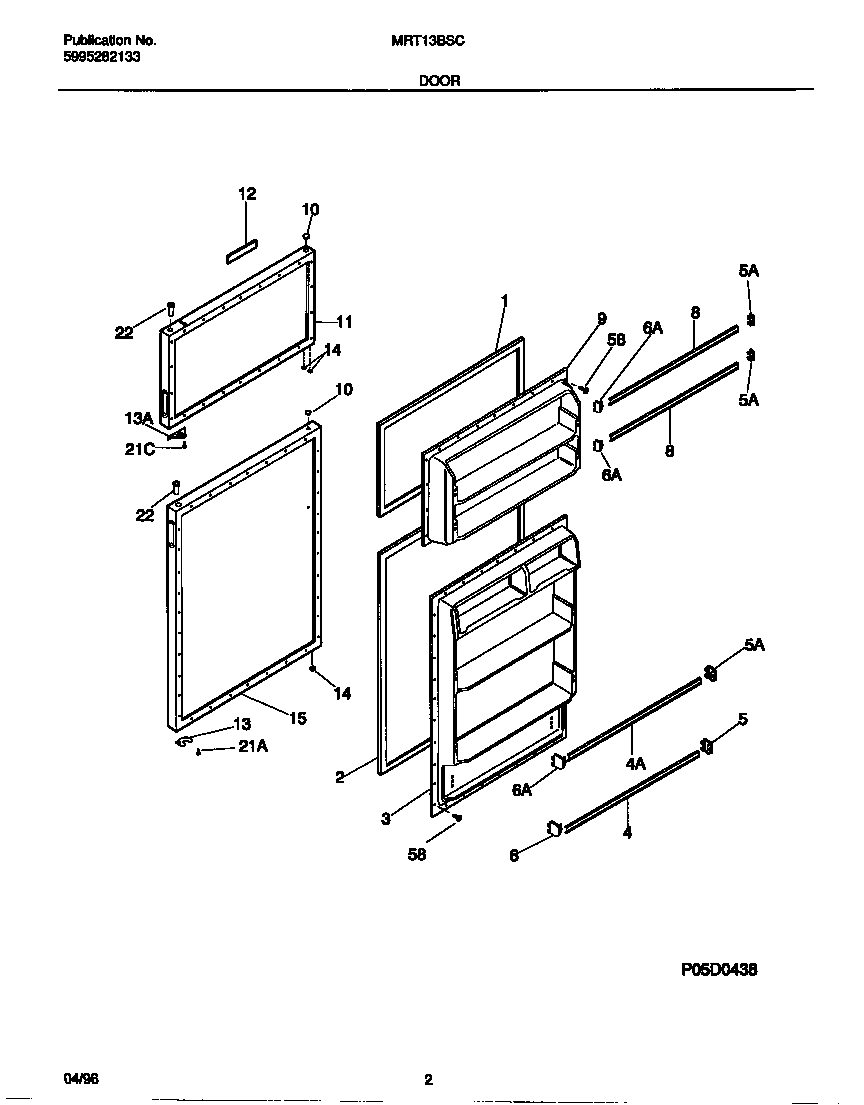

MRT13BSCD1 02 – DOOR

Products

Position	Product
*25080	INSULATION
1	WCI 215608901
2	WCI 5303299984
3	WCI 218473001
4	215366002 Frigidaire Refrigerator Door Wide Rack
4	RACK-DOOR, 23.16“ X 1.12“
5	3206165 Frigidaire Bar Endcap Right Hand
5	WCI 3206150
6	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6	WCI 3206151
7	WCI 5303001380
8	RACK-DOOR, 22.59“ X 1.12“
9	PANEL-INNER DOOR, FRZR
10	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11	PANEL-FRZR DOOR, ALMOND, WITH HANDLES, AND INSULATION
12	WCI 215503711
12	TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13	WCI 5308000255
13	WCI 218249002
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	WCI 218629302
21	218252201 Frigidaire Refrigerator Screw
21	SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22	WCI 218519300
58	216858001 Frigidaire Refrigerator Screw
